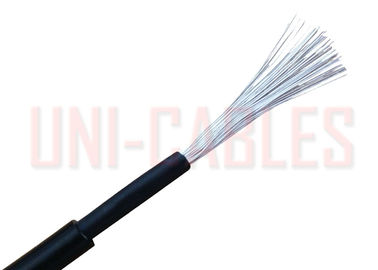

PV1-F PfG 1169 Solar Power Cables Soft Annealed Copper Conductor XLPE Insulation

: Large Image : PV1-F PfG 1169 Solar Power Cables Soft Annealed Copper Conductor XLPE Insulation

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	TUV
Model Number:	2PfG 1169

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Meters
Price:	US$ 1.5-1.8 per Meter
Packaging Details:	100 Meters oer
Delivery Time:	15-20 working days
Supply Ability:	100km per Month

Contact Now

Detailed Product Description

Conductor:	Class 5 Flexible Tinned Copper Conductor	Insulation:	XLPE
Sheath:	Crossed Linked Compound M21	Voltage Rating (Uo/U):	AC: 600/1000V, DC: 900/1800V
Temperature Rating:	Fixed: -40°C To +90°C	Minimum Bending Radius:	Flexed: 5 X Overall Diameter
Maximum Voltage (Umax):	1.8kV DC (conductor/conductor, Non Earthed System, Circuit Not Under Load)	Maximum Conductor Temperature:	+120°C (for 20000h)

PV1-F PfG 1169 Solar Power Cables Soft Annealed Copper Conductor XLPE Insulation

INTRODUCTION

Very tough cable, specifically for the rigours of outdoor use in solar panel installations. Dust, age and UV resistant, tinned copper conductors to minimise corrosion. Use with our PV connectors for complete environmental protection.
• Conductor material: Tin plate copper, Class 5 / Insulation material: XLPO
• Rated voltage:1000VDC / Current: 76A
• Temperature range: -40 - 125°C
• TUV certification: 2 PfG 1161/01.06 / IP65 rated

Properties

Used in extreme weather conditions.
Equipped with UV Resistance.
Halogen-free: low smoke emission and low toxicity during fire.
Flame & Fire retardant.
Flexibility & stripability: for fast and easy installation.
Easily Recyclable: in accordance with new government norms.
Easy installtion: with color identification.
Suitable to common connector types.
One common factor for most of the photovoltaic power system is outdoor use, characterized by high temperatures and high UV radiation.

Features

Chemical Features:

Weather resistant.
Resistant to mineral oils.
Resistant to acids & alkaline.

Thermal Features:

Ambient Temperature : -40oC ~ +90oC.
Maximum Temperature at Conductor: 120oC (20000h).
Short Circuit Temperature: 200oC at conductor (max. 5 sec).

Electrical Features:

Rated Voltage: 0.6/1 kV AC .
Rated DC Voltage: 1.5 kV.
Maximum Permitted DC Voltage: 1.8 kV (conductor / conductor, non earthed system, circuit not under load).
Maximum Permitted AC Voltage: 0.7/1.2 kV .
Working Voltage: DC 1000 V.
Insulation Resistance: 1000 MW-km.
Spark Test: 6000 Vac (8400 Vdc).
Voltage Withstand: 6500 V as per EN50395 for 5 min.

DIMENSIONS

Number of cores x conductor cross-section	Construction of individual conductor	External diameter	Conductor diameter	Insulation thickness	Conductor resistance at 20 °C	Current load	Cu weight	Cable weight
N x mm²	n x mm	mm	mm	mm	mm	Ω/km	kg/km	kg/km
1 x 1,5	30 x 0,25	5,1	1,6	0,7	13,3	30	14,4	38,4
1 x 2,5	50 x 0,25	5,4	2,0	0,7	7,98	41	24	45,4
1 x 4	56 x 0,30	6,2	2,5	0,7	4,95	55	38,4	60,1
1 x 6	84 x 0,30	6,9	3,1	0,7	3,30	70	57,6	90,7
1 x 10	80 x 0,40	8,2	4,1	0,7	1,91	98	96	131,1
1 x 16	128 x 0,40	9,3	5,2	0,7	1,21	132	153,6	187,1
1 x 25	200 x 0,40	10,8	6,5	0,9	0,78	176	240	276,1
1 x 35	280 x 0,40	12,1	7,5	0,9	0,554	218	336	368,8
1 x 50	400 x 0,40	14,8	9,0	1,0	0,386	276	480	557
1 x 70	356 x 0,50	16,9	11,0	1,1	0,272	347	672	767
1 x 95	485 x 0,50	18,7	12,7	1,1	0,206	416	912	989,6
1 x 120	614 x 0,50	20,7	13,7	1,2	0,161	488	1152	1232,8
