Detailed Product Description
Voltage Rating: 300/500V Temperature Rating: Fixed: -40°C To +80°C Flexed: -5°C To +80°C
Minimum Bending Radius: Flexed: 7.5 X Overall Diameter Breakdown Voltage: Min. 8000 V
Conductor: Class 5 Flexible Copper Conductor Insulation: PVC Z 7225

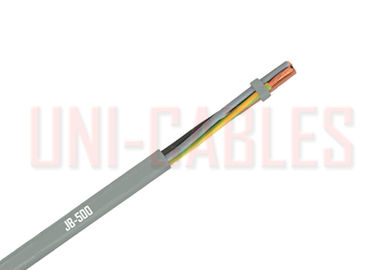

JB-500 Cable Flexible Control Cable With Color Coded Conductors



APPLICATION

JB-500 Cables are for flexible use in medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms, as measuring and control cables in machine tools, coneyor belts, production lines, as well as in machinery production, in air-conditioning and steel production plants. The green-yellow ground is located immediately below the outer jacket. JB cables are suitable for use in all electrical equipment either in wet or dry areas.



JB-500 Cables are not suitable for outdoor installations.



Cable Construction

  •  Bare copper, fine wire conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  •  Conductor insulation of special PVC Z 7225
  •  Conductors color coded as per JB/OB color code
  •  Green-yellow ground conductor in the outer layer (3 conductors and above)
  •  Conductors stranded in layers with optimal lay-length
  •  Special PVC outer jacket TM2, to DIN VDE 0281 part 1
  •  Color: gray (RAL 7001)



Technical Data

  •  Special PVC control cables
  •  Requirements adapted to DIN VDE 0245, 0281, 0293, 0295
  •  Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  •  Nominal Voltage U0/U 300/500 V
  •  Breakdown Voltage min. 8000 V
  •  Insulation Resistance
    Min. 20 MOhm x km
  •  Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  •  Radiation Resistance
    up to 80x106 cJ/kg (up to 80 Mrad)





No. Conductors x cross-sec.
mm2
Outer Diameter Copper weight Weight AWG
mm kg/km ca. kg/km
JB-500 2x0.5 4.9 9.6 40 20
JB-500 3G0.5 5.2 14.4 46 20
JB-500 3x0.5 5.2 14.4 46 20
JB-500 4G0.5 5.6 19.2 56 20
JB-500 4x0.5 5.6 19.2 56 20
JB-500 5G0.5 6.3 24 65 20
JB-500 5x0.5 6.3 24 65 20
JB-500 6G0.5 6.9 29 75 20
JB-500 7G0.5 6.9 34 80 20
JB-500 7x0.5 6.9 34 84 20
JB-500 8G0.5 8.1 38 97 20
JB-500 10G0.5 9 48 116 20
JB-500 12G0.5 9.2 58 135 20
JB-500 14G0.5 9.7 67 150 20
JB-500 16G0.5 10.4 77 172 20
JB-500 30G0.5 13.8 144 310 20
JB-500 2x0.75 5.3 14.4 46 18
JB-500 3G0.75 5.6 21.6 54 18
JB-500 3x0.75 5.6 21.6 54 18
JB-500 4G0.75 6.3 28.8 66 18
JB-500 4x0.75 6.3 28.8 66 18
JB-500 5G0.75 6.9 36 80 18
JB-500 5x0.75 6.9 36 80 18
JB-500 6G0.75 7.7 43.2 99 18
JB-500 7G0.75 7.7 50 110 18
JB-500 7x0.75 7.7 50 110 18
JB-500 8G0.75 9 58 130 18
JB-500 9G0.75 9.8 65 153 18
JB-500 10G0.75 9.8 72 162 18
JB-500 12G0.75 10 86 179 18
JB-500 15G0.75 11.2 108 218 18
JB-500 18G0.75 12.2 130 257 18
JB-500 21G0.75 13.5 151 320 18
JB-500 25G0.75 14.5 180 365 18
JB-500 2x1 5.6 19.2 60 17
JB-500 3G1 6.1 29 72 17
JB-500 3x1 6.1 29 72 17
JB-500 4G1 6.6 38.4 86 17
JB-500 4x1 6.6 38.4 86 17
JB-500 5G1 7.5 48 104 17
JB-500 5x1 7.5 48 104 17
JB-500 6G1 8.1 58 125 17
JB-500 6x1 8.1 58 125 17
JB-500 7G1 8.1 67 141 17
JB-500 7x1 8.1 67 141 17
JB-500 8G1 9.6 77 175 17
JB-500 9G1 10.6 87 200 17
JB-500 10G1 10.6 96 207 17
JB-500 12G1 10.8 115 230 17
JB-500 14G1 11.4 134 271 17
JB-500 16G1 12.3 154 300 17
JB-500 18G1 12.9 173 343 17
JB-500 20G1 13.7 192 375 17
JB-500 24G1 14.7 230 468 17
JB-500 25G1 15.6 240 485 17
JB-500 2x1.5 6.4 29 70 16
JB-500 3G1.5 6.8 43 90 16
JB-500 3x1.5 6.8 43 90 16
JB-500 4G1.5 7.6 58 109 16
JB-500 4x1.5 7.6 58 109 16
JB-500 5G1.5 8.3 72 131 16
JB-500 5x1.5 8.3 72 131 16
JB-500 6G1.5 9.2 86.4 157 16
JB-500 7G1.5 9.2 101 184 16
JB-500 7x1.5 9.2 101 184 16
JB-500 8G1.5 10.6 115 216 16
JB-500 11G1.5 12.2 158 300 16
JB-500 12G1.5 12.2 173 309 16
JB-500 14G1.5 13 202 345 16
JB-500 16G1.5 13.9 230 386 16
JB-500 18G1.5 14.8 259 440 16
JB-500 20G1.5 15.5 288 490 16
JB-500 25G1.5 17.8 360 620 16
JB-750 2x2.5 7.8 48 112 14
JB-500 3G2.5 8.3 72 148 14
JB-500 3x2.5 8.3 72 148 14
JB-500 4G2.5 9.2 96 178 14
JB-500 4x2.5 9.2 96 178 14
JB-500 5G2.5 10.1 120 221 14
JB-500 5x2.5 10.1 120 221 14
JB-500 6G2.5 11.2 144 293 14
JB-500 7G2.5 11.2 168 306 14
