High Voltage IEC 6201 - T81 AAAC Conductor , Aluminum Alloy American Standard Bare Overhead Cable

China High Voltage IEC 6201 - T81 AAAC Conductor , Aluminum Alloy American Standard  Bare Overhead Cable supplier

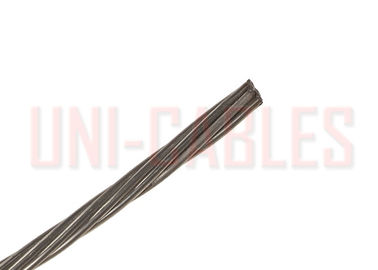

Large Image :  High Voltage IEC 6201 - T81 AAAC Conductor , Aluminum Alloy American Standard Bare Overhead Cable

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: AAAC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Metric-Tons
Price: USD$3100-3300 Per MT
Packaging Details: 1 MT per Wooden Reel
Delivery Time: 15-20 days
Supply Ability: 100000MT per Month
Contact Now
Detailed Product Description
Conductor: AL6201-T81 Voltage: High Voltage
Size: 16-1120 Mm2 Standard: IEC Specification
No. Of Wires: 7-91 Resistivity: 52.5% IACS

American Standard AAAC Conductor Aluminum Alloy 6201-T81 Bare Overhead Cable



APPLICATION

Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.



Construction
Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay stranded, similar in construction and appearance to 1350 grade aluminum conductors.



Standard 6201 alloy conductors were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core.



The DC resistance at 20°C of the 6201-T81 conductors and of the standard ACSRs of the same diameter are approximately the same. Conductors of the 6201-T81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.



CABLE STANDARDS
ASTM-B399



DIMENSIONS

American Standard
All Aluminum Alloy 6201-T81 Conductors ( AAAC )
Code
Name
Total Area 1350 Grade Equivalent
(Approx)
Stranding Conductor
Nominal
Diameter
Nominal
Weight
Rated
Strength
Maximum DC
resistance
at 20 ℃
AWG or
MCM
mm2 AWG or MCM No/ mm mm kg/km kN Ω /km
Akron 30.58 15.52 6 7x1.68 5.04 43 4.92 2.1588
Alton 48.69 24.71 4 7x2.12 6.36 68 7.83 1.3557
Ames 77.47 39.19 2 7x2.67 8.01 108 12.42 0.8547
Azusa 123.3 62.44 1 7x3.37 10.11 171 18.88 0.5365
Anaheim 155.4 78.55 2/0 7x3.78 11.34 216 23.75 0.4264
Amherst 195.7 99.3 3/0 7x4.25 12.75 272 30.03 0.3373
Alliance 246.9 125.1 4/0 7x4.77 14.31 343 37.83 0.2678
Butte 312.8 158.6 266.8 19x3.26 16.3 435 46.46 0.2112
Canton 394.5 199.9 336.4 19x3.66 18.3 548 58.56 0.1676
Cairo 465.4 236.4 397.5 19x3.98 19.9 649 69.25 0.1417
Darien 559.5 283.57 477 19x4.36 21.8 778 83.1 0.1181
Elgin 652.6 331 556.5 19x4.71 23.55 908 96.98 0.1012
Flint 740.8 374.5 636 37x3.59 25.13 1028 107.36 0.0894
Greeley 927.2 469.6 795 37x4.02 28.14 1289 134.62 0.0713
