Conductor: | AA6201-T81 | Voltage: | High Voltage |
---|---|---|---|
Size: | 16-1120 Mm2 | Standard: | IEC Specification |
No. Of Wires: | 7-37 | Resistivity: | 52.5% IACS |
Australian Spec AAAC Conductor AAAC6201 Overhead Power Net Conductor
APPLICATION
All Aluminium Alloy Conductor (AAAC) is formed by several aluminium magnesium silicon wires stranded in concentric layers. All the wires have the same nominal diameter. AAAC Conductor has lesser conductivity than ACSR Conductor.
Product Construction

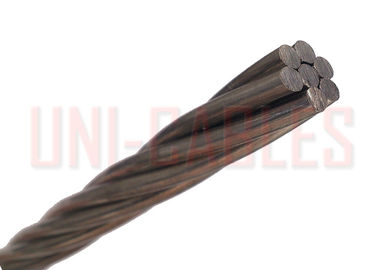

AAAC cable is a concentric lay-stranded bare conductor consisting of Aluminum alloy 6201-T81 wires available in both single layer and multi-layer constructions.
Product Specifications
AAAC cable meets or exceeds industry requirements per AS1531
Product Features
AAAC cable offers better sag performance due to the high strength to weight ratio provided by the 6201-T81 alloy.
CABLE STANDARDS
DIN48201
Bare Overhead Conductor | |
Type: | AAAC-6201 |
Rated Voltage: | 500KV,220KV,110KV,35KV,10KV |
Standards: | GB/T1179, IEC60189, ASTM-B399, BS3242, DIN48021,SS424 0814 |
Structure Chart: | |
Cutline | |
Product Feature: | Conductor: Concentric Lay Stranded Hard Drawn Aluminum 6201-T81 Wire |
Applications: | Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics. Aluminum-alloy gives 6201-T81 gives AAAC higher resistance to corrosion than ACSR. 1.Max. permission operating temperature shall not exceed 80℃ 2.Ambinate temperature shall not lower than -20℃ 3.The laying bending radius shall not less than 12 times the outer diameter of cable. |
DIMENSIONS
Australian Spec All Aluminum Alloy 6201 Conductors ( AAAC-6201 ) |
|||||||
Code Name | Area Actual | Equivalent Copper Area |
Stranding | Overall Diameter |
Weight | Rated Strength |
Maximum DC Resistance at 20℃ |
mm2 | mm2 | No/mm | mm | kg/km | kN | Ω /km | |
Diamond | 34.36 | 18 | 7/2.50 | 7.5 | 94.3 | 9.64 | 0.967 |
Dolomite | 41.58 | 21.8 | 7/2.75 | 8.25 | 113 | 11.6 | 0.799 |
Emerald | 49.48 | 26 | 7/3.00 | 9 | 135 | 13.9 | 0.671 |
Garnet | 77.28 | 40.6 | 7/3.75 | 11.3 | 211 | 21.7 | 0.43 |
Jade | 111.3 | 58.4 | 7/4.50 | 13.5 | 304 | 31.2 | 0.298 |
Jasper | 124 | 65.1 | 7/4.75 | 14.3 | 339 | 34.8 | 0.268 |
Opal | 157.6 | 82.7 | 19/3.25 | 16.3 | 433 | 44.2 | 0.212 |
Patronite | 182.8 | 96 | 19/3.50 | 17.5 | 503 | 51.3 | 0.183 |
Pearl | 209.8 | 110.1 | 19/3.75 | 18.8 | 576 | 58.8 | 0.159 |
Rutile | 336.7 | 176.8 | 19/4.75 | 23.8 | 924 | 94.4 | 0.0991 |
Ruby | 261.6 | 137.3 | 37/3.00 | 21 | 721 | 73.5 | 0.128 |
Ruthenium | 307 | 161.2 | 37/3.25 | 22.8 | 845 | 86.1 | 0.109 |
Sapphire | 408.5 | 214.5 | 37/3.75 | 26.3 | 1120 | 115 | 0.0819 |
Spinel | 506.1 | 265.7 | 61/3.25 | 29.3 | 1400 | 135 | 0.0662 |
Tantalum | 586.9 | 308.1 | 61/3.50 | 31.5 | 1620 | 156 | 0.0572 |
Topaz | 673.4 | 353.5 | 61/3.75 | 33.8 | 1860 | 179 | 0.0498 |
