Canadian Size AAAC Conductor AA6201 Stranded OH Cable Without Sheath

China Canadian Size AAAC Conductor AA6201 Stranded OH Cable Without Sheath supplier

Large Image :  Canadian Size AAAC Conductor AA6201 Stranded OH Cable Without Sheath

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: AA6201

Payment & Shipping Terms:

Minimum Order Quantity: 1 Metric-Tons
Price: USD$3100-3300 Per MT
Packaging Details: 1 MT per Wooden Reel
Delivery Time: 15-20 days
Supply Ability: 100000MT per Month
Contact Now
Detailed Product Description
Conductor: AL6201-T81 Voltage: High Voltage
Size: 16-1120 Mm2 Standard: IEC Specification
No. Of Wires: 7-91 Resistivity: 52.5% IACS

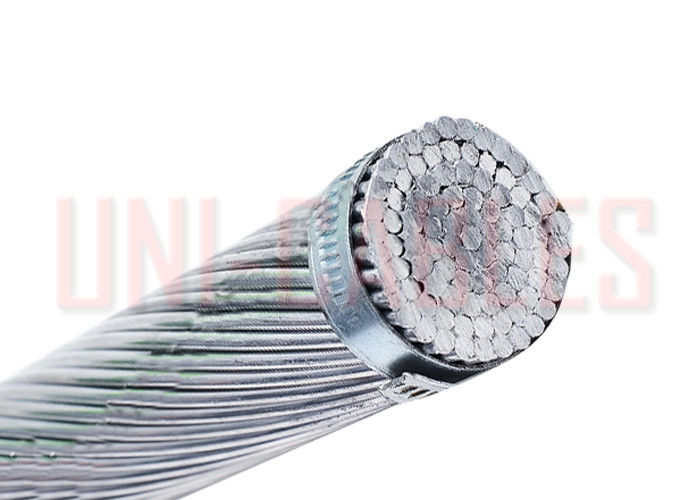

Canadian Size AAAC Conductor AA6201 Stranded OH Cable Without Sheath





APPLICATION

AAAC, or All Aluminium Alloy Conductor, is used as a bare overhead conductor for power transmission and distribution lines. Its advantages over its counterparts, AAC and ACSR, are that it has a higher mechanical resistance than AAC, and better corrosion resistance than ACSR. Additionally, AAAC has better strength to weight ratios and therefore better sag characteristics than the other two.



Construction

AAAC is a homogenous concentric-lay-stranded conductor made from round aluminium alloy wires. AAAC conductors are available in single and multi-layer constructions.
These choices provide the necessary strength and the current carrying capacity forgiven applications.



Specifications

AAAC conductors are manufactured in accordance with the following Standards:

  • British Sizes BS EN 50182
  • IEC Sizes IEC 1089
  • American Sizes ASTM B 399
  • Canadian Sizes CSA C 49
  • German Sizes DIN 48 201

Features

The high strength to weight ratio provided by the aluminium alloy makes the homogeneous construction of AAAC conductors a preferred choice for transmission and distribution projects where:

  • Conductor with more strength than AAC is required.
  • Conductor with comparable strength than ACSR is preferred, and
  • Higher corrosion resistance than ACSR is essential.



DIMENSIONS



Canadian Size
All Aluminum Alloy Conductors
Area Equivalent Copper
Area
Total Area Stranding Overall
Diameter
Weight Rated
Strength
Maximum DC
Resistance
at 20oC
AWG or
MCM
mm2 AWG
or MCM
mm2 MCM mm2 No/mm mm kg/km kN Ω /km
8 8.3 10 5.1 19 9.5 7/1.32 3.96 26 2.92 3.44
7 10.5 9 6.4 24 12 7/1.48 4.44 33 3.67 2.737
6 13.2 8 8 30 15.2 7/1.66 4.98 41 4.62 2.175
5 16.8 7 10.6 38 19.1 7/1.86 5.58 52 5.8 1.733
4 20.9 6 12.7 48 24.1 7/2.09 6.27 66 7.32 1.372
3 26.4 5 16.1 60 30.4 7/2.35 7.05 83 9.26 1.085
2 33.3 4 20.3 76 38.3 7/2.64 7.92 105 11.69 0.8601
1 41.9 3 25.5 95 48.3 7/2.96 8.88 132 14.69 0.6842
1/0 53 2 32.3 120 61 7/3.33 9.99 166 18.59 0.5406
2/0 66.8 1 40.8 152 76.8 7/3.74 11.22 210 23.45 0.4286
3/0 84.3 1/0 51.4 192 97 7/4.20 12.6 265 29.58 0.3398
4/0 106.4 2/0 64.9 241 122.5 7/4.72 14.16 334 37.36 0.2691
4/0 106.1 2/0 64.7 241 122.1 19/2.86 14.3 335 37.23 0.2713
266.8 133.6 3/0 81.5 304 153.8 19/3.21 16.05 421 46.9 0.2154
300 150.8 189 92 342 173.5 19/3.41 17.05 475 52.92 0.1908
336 169 4/0 103.1 384 194.4 19/3.61 18.05 533 59.31 0.1703
397.5 199.2 250 121.5 453 229.3 19/3.92 19.6 629 69.94 0.1444
477 239.7 300 146.2 544 275.9 19/4.30 21.5 756 84.16 0.12
500 250.5 315 152.8 570 288.3 37/3.15 22.05 791 87.95 0.1151
556.5 280 350 170.8 635 322.2 37/3.33 23.31 885 98.28 0.103
636 320 400 195.2 725 368.3 37/3.56 24.92 1012 112.33 0.0901
715.5 358.9 450 218.9 816 413 37/3.77 26.39 1134 125.97 0.0804
750 376.2 472 229.5 856 433 37/3.86 27.02 1188 132.06 0.0767
795 399.9 500 244 907 460.3 37/3.98 27.86 1264 140.4 0.0721
814.5 436.9 550 266.5 997 502.9 37/4.16 29.12 1380 153.38 0.066
