Conductor: | AA1120 | Voltage: | High Voltage |
---|---|---|---|
Size: | 16-1120 Mm2 | Standard: | IEC Specification |
No. Of Wires: | 7-37 | Resistivity: | 61% IACS |

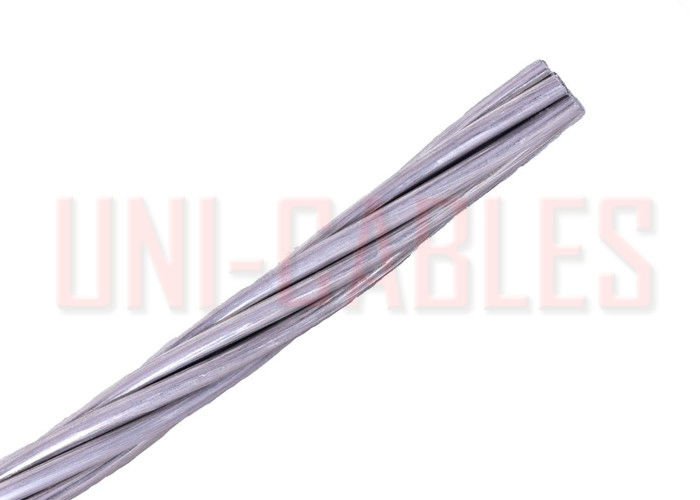

Australian Spec AAAC Conductor AAAC1120 Low Resistance Bare Conductor
APPLICATION
The wires in all bare conductors are stranded concentrically with successive layers having an opposite direction of lay, the outermost layer being right-handed. When required, a larger central wire (king-wire) is included in a conductor. The diameter of this wire is based on conductor design considerations and is usually 5% greater than the surrounding wires. The incorporation of a king wire is often an advantage for ACSR type conductors, as it ensures that the surrounding layer of wires fits firmly on the central wire.
SPECIFICATION
CABLE STANDARDS
AS1531
DIMENSIONS
Australian Spec All Aluminum Alloy 1120 Conductors ( AAAC-1120 ) |
|||||||
Code Name | Area Actual | Equivalent Copper Area |
Stranding | Overall Diameter |
Weight | Rated Strength |
Maximum DC Resistance at 20℃ |
mm2 | mm2 | No/mm | mm | kg/km | kN | Ω /km | |
Chlorine | 34.36 | 20.3 | 7/2.50 | 7.5 | 94.3 | 8.18 | 0.864 |
Chromium | 41.58 | 24.5 | 7/2.75 | 8.25 | 113 | 9.91 | 0.713 |
Fluorine | 49.48 | 29.2 | 7/3.00 | 9 | 135 | 11.8 | 0.599 |
Helium | 77.28 | 45.6 | 7/3.75 | 11.3 | 211 | 17.6 | 0.383 |
Hydrogen | 111.3 | 65.7 | 7/4.50 | 13.5 | 304 | 24.3 | 0.266 |
Iodine | 124 | 73.2 | 7/4.75 | 14.3 | 339 | 27.1 | 0.239 |
Krypton | 157.6 | 93 | 19/3.25 | 16.3 | 433 | 37.4 | 0.189 |
Lutetium | 182.8 | 107.9 | 19/3.50 | 17.5 | 503 | 41.7 | 0.163 |
Neon | 209.8 | 123.8 | 19/3.75 | 18.8 | 576 | 47.8 | 0.142 |
Oxygen | 336.7 | 198.7 | 19/4.75 | 23.8 | 924 | 73.6 | 0.0884 |
Nitrogen | 261.6 | 154.3 | 37/3.00 | 21 | 721 | 62.2 | 0.114 |
Nobelium | 307 | 181.1 | 37/3.25 | 22.8 | 845 | 72.8 | 0.0973 |
Phosphorous | 408.5 | 241 | 37/3.75 | 26.3 | 1120 | 93.1 | 0.0731 |
Selenium | 506.1 | 298.6 | 61/3.25 | 29.3 | 1400 | 114 | 0.0592 |
Silicon | 586.9 | 346.3 | 61/3.50 | 31.5 | 1620 | 127 | 0.0511 |
Sulfur | 673.4 | 397.3 | 61/3.75 | 33.8 | 1860 | 145 | 0.0444 |
