High Voltage AAAC Conductor AA6201 Swedish Spec Aerial Bare Conductor

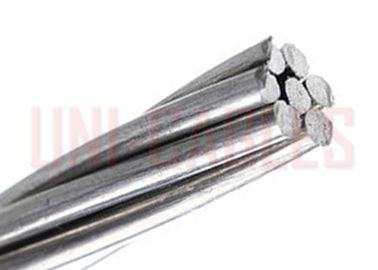

: Large Image : High Voltage AAAC Conductor AA6201 Swedish Spec Aerial Bare Conductor

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	AAAC6201

Payment & Shipping Terms:

Minimum Order Quantity:	1 Metric-Tons
Price:	USD$3100-3300 Per MT
Packaging Details:	1 MT per Wooden Reel
Delivery Time:	15-20 days
Supply Ability:	100000MT per Month

Contact Now

Detailed Product Description

Conductor:	AA6201	Voltage:	High Voltage
Size:	31-910 Mm2	Standard:	Swedish Spec
No. Of Wires:	7-61 Wires	Resistivity:	52.5% IACS
Highlight:	overhead line conductor , reinforced electrical cable

Swedish Spec AAAC Conductor AAAC6201 High Voltage Aerial Bare Conductor

APPLICATION

The material used on these conductor is an aluminium alloy AA-6101. It’s a special alloy with Magnesium and Silicium with an excellent conductivity value (the average is 53%IACS).
The specific mechanical resistance is higher than AAC conductor (more or less the double), maintaining a high corrosion resistance.
Compared to ACSR, this kind of conductor is characterized by a lower diameter and the overloads due to the wind pressure are lower.

Key Benefits

High tensile strength as compared to AAAC conductor.
Higher conductivity as compared to ACSR conductor.
Better corrosion resistance than ACSR conductor.

Physical Contents of Alluminium Alloy :

Density : 2.70 kgm/dm3 at 20°C
Coefficient of Linear Expansion : 23 x 10-6 / °C
Resistivity : 0.0326 Ohms mm2/m at 20°C
Constant Mass Temperature Coefficient (a) : 0.00360/ °C
Material : Heat treated Al. Mg. Si. Alloy

DIMENSIONS

Swedish Spec. All Aluminum Alloy Conductors ( AAAC )
Area		Equivalent Copper Area	Stranding	Overall Diameter	Weight	Rated Strength	Maximum DC Resistance at 20oC
Nominal	Actual	Equivalent Copper Area	Stranding	Overall Diameter	Weight	Rated Strength	Maximum DC Resistance at 20oC
mm2	mm2	mm2	No/mm	mm	kg/km	kN	Ω /km
31	31.1	17.7	7/2.38	7.14	85	9.31	0.974
62	62.4	35.6	7/3.37	10.11	170	17.2	0.486
99	99.3	56.6	7/4.25	12.75	271	25.3	0.305
157	158.6	90.4	19/3.26	16.3	436	43.7	0.193
241	241.2	137.5	19/4.02	20.1	663	61.6	0.127
329	330	188.1	37/3.37	23.59	910	90.7	0.0928
454	454.5	259.1	61/3.08	27.72	1260	125	0.0675
593	593.6	338.4	61/3.52	31.68	1640	157	0.0517
774	774.2	441.3	61/4.02	36.18	2140	197	0.0396
910	910.7	519.1	61/4.36	39.24	2520	232	0.0337
