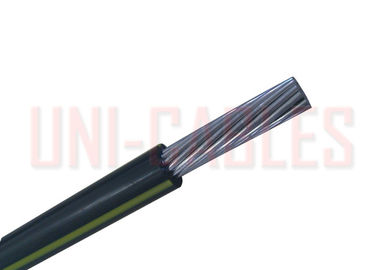

XHHW - 2 Entrance Underground Service Cable UL Listed AA8030 Conductor

: Large Image : XHHW - 2 Entrance Underground Service Cable UL Listed AA8030 Conductor

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	UL-LISTED
Model Number:	XHHW

Payment & Shipping Terms:

Minimum Order Quantity:	5KM
Price:	Negotiable
Packaging Details:	1km per reel
Delivery Time:	15-20 Working days
Supply Ability:	700km per Week

Contact Now

Detailed Product Description

Conductor:

AA8030

Insulation:

UL XLPE

Voltage Rating:

600V

Temperature Rating:

0°C To 90°C

Highlight:

ul listed wire

service entrance cable

UL Listed XHHW-2 Cable Service Entrance Cable AA8030 Conductor Service Cable

APPLICATIONS

XHHW-2 conductors are primarily used in conduit or recognized raceways for services, feeders, and branch circuit wiring as specified in the National Electrical Code.

XHHW-2 conductors may be used in wet or dry locations at temperatures not to exceed 90°C.

Voltage rating for XHHW-2 conductors is 600 volts.

Suitable for use in Health Care Facilities per section 517.160 of the NEC where a dielectric constant of 3.5 or less may be specified.

This product in sizes 500kcmil and larger is designed to be installed without the application of pulling lubricant.

Mian Feature

600 Volt. Aluminum Alloy (AA-8030) Conductor.
Cross-linked Polyethylene (XLP) Insulation.
High-Heat and Moisture Resistant.
Sunlight Resistant in Black Sizes 2 AWG and Larger.

DIMENSIONS

UNI-CABLES Part Number	Size AWG	Stranding	Conductor Diameter (inches)	Insulation Thickness (inches)	Overall Diameter (inches)	Weight LBS/1000'	Ampacity at 90C *
AL-XHHW-8	8	7	0.134	0.045	0.227	30	45
AL-XHHW-6	6	7	0.169	0.045	0.262	42	60
AL-XHHW-4	4	7	0.213	0.045	0.306	68	75
AL-XHHW-2	2	7	0.268	0.045	0.361	86	100
AL-XHHW-1	1	7	0.299	0.550	0.412	110	115
AL-XHHW-1/0	1/0	18	0.335	0.550	0.449	134	135
AL-XHHW-2/0	2/0	18	0.378	0.550	0.489	163	150
AL-XHHW-3/0	3/0	18	0.423	0.550	0.536	200	175
AL-XHHW-4/0	4/0	18	0.476	0.550	0.588	247	205
AL-XHHW-250	250	35	0.520	0.650	0.653	296	230
AL-XHHW-300	300	35	0.571	0.650	0.703	359	255
AL-XHHW-350	350	35	0.614	0.650	0.749	401	280
AL-XHHW-400	400	35	0.657	0.650	0.792	453	305
AL-XHHW-500	500	35	0.736	0.650	0.869	556	350
AL-XHHW-600	600	58	0.816	0.800	0.979	679	385
AL-XHHW-700	700	58	0.877	0.800	1.040	782	420
AL-XHHW-750	750	58	0.909	0.800	1.071	833	435
AL-XHHW-900	900	58	0.999	0.800	1.162	987	480
AL-XHHW-1000	1000	58	1.059	0.800	1.223	1090	500
