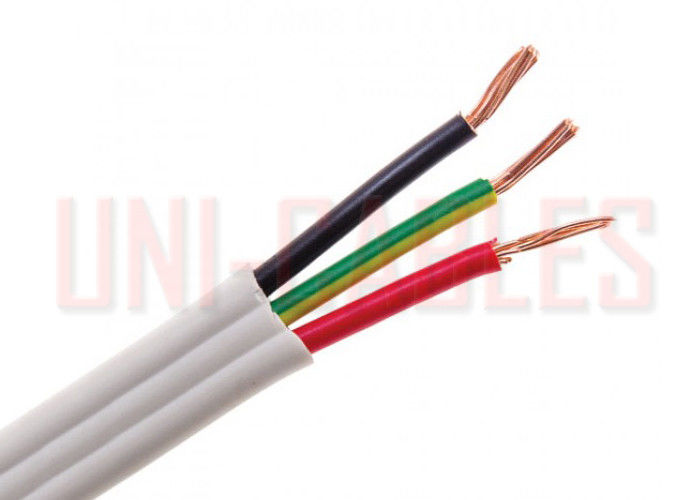

Flat TPS 2 Core PVC Insulated Cable 450 750V

China Flat TPS 2 Core  PVC Insulated Cable 450 750V supplier

Large Image :  Flat TPS 2 Core PVC Insulated Cable 450 750V

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: CCC,ISO9001,SAA
Model Number: TPS Flat

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Negotiable
Packaging Details: 100 meters per roll, or 1000 meters per reel
Delivery Time: 10 working days
Supply Ability: 10000 per Week
Contact Now
Detailed Product Description
Voltage Rating: 450/750V Temperature Rating: 90°C
Minimum Bending Radius: Fixed: 7 X Overall Diameter Flexed: 10 X Overall Diameter Conductor: Class 2 Copper Conductor
Insulation: V90 PVC Sheath: 3V 90 PVC

Flat TPS 2 Core 3 Core and Earth PVC Insulated Cable Wire Voltage 450/750V





Application

These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Suitable for balanced three phase applications with E.



Cable Standard

AS/NZS 5000.2,
AS 1125, AS 3808



Cable Construction

Conductor: Plain annealed copper
Maximum continuous operating temperature: 90°C


Insulation: V-90 PVC

Colours:Red, White, Blue, Green/yellow



Sheath: 3V-90 PVC
Colours: White, other colors are available upon request





Technical Characteristics

Conductor Nominal Area
mm2
Current Ratings Electrical Characteristics
Unenclosed In Air
A
Surrounded by thermal insulation A Buried In Ducts
A
Maximum DC Resistance
@20°C
Ohm/km
Maximum AC Resistance
@75°C
Ohm/km
Reactance Ohm/km
1 16 8 19 18.1 27.0 0.119
1.5 21 10 24 13.6 17.3 0.111
2.5 30 15 34 7.41 9.45 0.102
4 39 19 44 4.61 5.88 0.102
6 50 25 56 3.08 3.93 0.0967
10 68 34 75 1.83 2.33 0.0906
16 91 46 97 1.15 1.47 0.0861




Cable Parameter

2 Cores and Earth

Nom.
conductor area mm2
Conductor No./ OD Nom.
insulation thickness mm
earth
conductor area mm2
Nom. sheath thickness mm Nom. overall diameter
mm
Approx. mass kg/km
Min Max
1.0 1/1.13 0.6 1.0 0.9 8.8x4.1 9.3x4.4 75
1.5 7/0.50 0.6 1.5 0.9 10.0x4.5 10.0x4.5 95
2.5 7/0.67 0.7 2.5 1 12.1x5.4 12.7x5.7 145
4 7/0.85 0.8 2.5 1.1 13.7x6.3 14.4x6.6 220
6 7/1.04 1.0 2.5 1.1 14.9x6.9 15.6x7.3 290
10 7/1.35 1.0 4 1.2 18.9x8.3 19.0x8.7 440
16 7/1.70 1.0 6 1.3 21.0x9.5 22.0x10.0 645



3 Cores and Earth

Nom.
conductor area mm2
Conductor No./ OD Nom.
insulation thickness mm
earth
conductor area mm2
Nom.
sheath thickness mm
Nom. overall diameter
mm
Approx. mass kg/km
Min Max
1.0 1/1.13 0.6 1.0 0.9 11.1x4.1 11.8x4.4 95
1.5 7/0.50 0.6 1.5 0.9 12.6x4.5 13.3x4.8 120
2.5 7/0.67 0.7 2.5 1 15.6x5.4 16.4x5.7 190
4 7/0.85 0.8 2.5 1.1 17.7x6.2 18.6x6.7 290
6 7/1.04 1.0 2.5 1.1 19.5x6.9 20.4x7.3 370
10 7/1.35 1.0 4 1.2 24.0x8.2 24.5x8.7 540
16 7/1.70 1.0 6 1.3 27.8x9.5 29.1x10.0 820
