LSZH SWA BS7846 Fire Proof Cable XLPE PVC Class 2 Fire Resistance

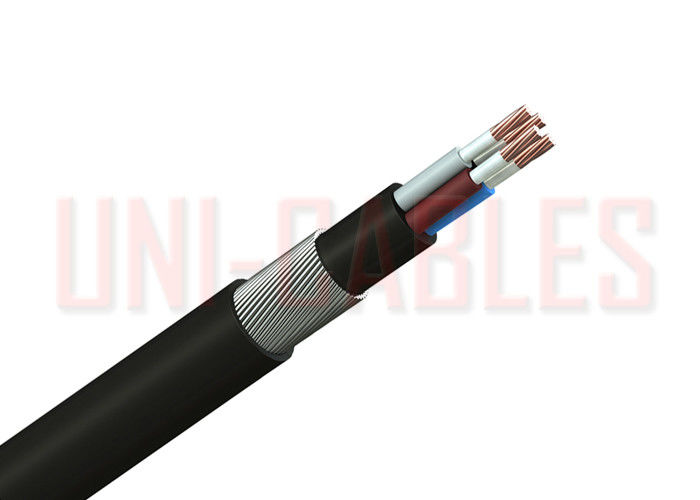

: Large Image : LSZH SWA BS7846 Fire Proof Cable XLPE PVC Class 2 Fire Resistance

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	FR-RES 4X50

Payment & Shipping Terms:

Minimum Order Quantity:	500 Meters
Price:	Negotiable
Packaging Details:	500 Meters per wooden reel
Delivery Time:	15-20 working days
Supply Ability:	70000 Meters per Week

Contact Now

Detailed Product Description

Conductor:	Class 2 Stranded Copper Conductor	Separator:	Mica/glass Fire Barrier Tape
Insulation:	XLPE (Cross-Linked Polyethylene)	Bedding:	LSZH (Low Smoke Zero Halogen)
Armour:	SWA (Steel Wire Armour)	Sheath:	LSZH (Low Smoke Zero Halogen)
Voltage Rating (Uo/U):	600/1000V	Operating Temperature:	-10°C To +90°C

BS7846 CU/XLPE/SWA/PVC Fire Performance Cable LSZH Fire Resistance Cable

APPLICATION
FR-RES Power cable is a fire resistant armoured cable suitable for usein fixed installations for power circuits, fire alarm systems and emergency lighting systems. It is robust, flexible and suitable for use inside and outside buildings, meeting the enhanced grade of BS 5839-1 26.2e

Construction

Conductor: Plain annealed copper stranded circular (4 - 35mm²) or shaped (50 – 400mm²)conductor complying with BS EN 60228 Class 2

Insulation:

Primary insulation: Mineral ceramic (Mica/Glass) fire resistant tape

Secondary insulation: 90°C cross – linked insulation

Core identification:

2 core – Brown and Blue

3 core – Brown, Black and Grey

4 core – Blue, Brown, Black and Grey

Bedding: Thermoplastic LSZH bedding compound

Armour: Single layer of galvanised steel wires

Sheath: Robust thermoplastic LSZH sheath

Colour: Black (other colours available for special order)

Properties: Reduced flame propagation, low smoke and corrosive gas emission.

Installation: Minimum recommended installation temperature: 0°

Bending radius: Circular conductors: 6 x overall diameter

Shaped conductors: 8 x overall diameter

Temperature: The tabulated ratings are based upon a 30°C ambient temperature and 90°C operating temperature

Standards: BS 8519 – Category 1, 2 and 3

BS 7846 – F120, 120 mins fire, water jet and direct impact

DIMENSIONS

PART NO.	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	INSULATION RADIAL THICKNESS mm	GALVANISED STEEL ARMOUR WIRE DIAMETER mm	OUTER SHEATH RADIAL THICKNESS mm	OUTER SHEATH DIAMETER mm	NOMINAL WEIGHT kg/km
UNIFP02015	2	1.5	0.6	0.9	1.4	11	240
UNIFP02025	2	2.5	0.7	0.9	1.4	12	300
UNIFP02040	2	4	0.7	0.9	1.4	13	360
UNIFP02060	2	6	0.7	0.9	1.4	14	440
UNIFP0210	2	10	0.7	0.9	1.5	16	580
UNIFP0216	2	16	0.7	0.9	1.5	19	860
UNIFP0225	2	25	0.9	1.25	1.6	22	1050
UNIFP0235	2	35	0.9	1.6	1.7	26	1450
UNIFP0250	2	50	1	1.6	1.8	25	1700
UNIFP0270	2	70	1.1	1.6	1.9	28	2250
UNIFP0295	2	95	1.1	2	2	32	3050
UNIFP02120	2	120	1.2	2	2.1	35	3650
UNIFP02150	2	150	1.4	2	2.2	39	4350
UNIFP02185	2	185	1.6	2.5	2.4	44	5650
UNIFP02240	2	240	1.7	2.5	2.5	47	6950
UNIFP02300	2	300	1.8	2.5	2.6	52	8350
UNIFP02400	2	400	2	2.5	2.8	58	11030
UNIFP03015	3	1.5	0.6	0.9	1.3	11	260
UNIFP03025	3	2.5	0.7	0.9	1.4	12	320
UNIFP03040	3	4	0.7	0.9	1.4	13	400
UNIFP03060	3	6	0.7	0.9	1.4	14	490
UNIFP0310	3	10	0.7	1.25	1.5	17	760
UNIFP0316	3	16	0.7	1.25	1.6	19	1020
UNIFP0325	3	25	0.9	1.6	1.7	25	1600
UNIFP0335	3	35	0.9	1.6	1.8	27	1950
UNIFP0350	3	50	1	1.6	1.8	28	2250
UNIFP0370	3	70	1.1	1.6	1.9	31	2000
UNIFP0395	3	95	1.1	2	2.1	36	4100
UNIFP03120	3	120	1.2	2	2.2	39	4950
UNIFP03150	3	150	1.4	2.5	2.3	44	6350
UNIFP03185	3	185	1.6	2.5	2.4	49	7600
UNIFP03240	3	240	1.7	2.5	2.6	54	9550
UNIFP03300	3	300	1.8	2.5	2.7	58	11550
UNIFP03400	3	400	2	2.5	2.9	65	14400
UNIFP04015	4	1.5	0.6	0.9	1.3	13.3	367
UNIFP04025	4	2.5	0.7	0.9	1.4	14.7	454
UNIFP04040	4	4	0.7	0.9	1.4	16	556
UNIFP04060	4	6	0.7	1.25	1.5	18.2	783
UNIFP0410	4	10	0.7	1.25	1.5	20	1029
UNIFP0416	4	16	0.7	1.25	1.6	22.5	1367
UNIFP0425	4	25	0.9	1.6	1.7	29.9	2240
UNIFP0435	4	35	0.9	1.6	1.8	33.5	2705
UNIFP0450	4	50	1	1.6	1.9	37.1	3375
UNIFP0470	4	70	1.1	2	2.1	39.1	4560
UNIFP0495	4	95	1.1	2	2.2	43	5805
UNIFP04120	4	120	1.2	2.5	2.3	48.3	7430
UNIFP04150	4	150	1.4	2.5	2.4	52.4	8820
