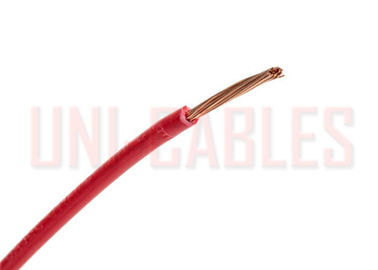

Polyvinyl Chloride Red Black PVC Electrical Cable 2491x For Grounding And Control

: Large Image : Polyvinyl Chloride Red Black PVC Electrical Cable 2491x For Grounding And Control

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001
Model Number:	2491X

Payment & Shipping Terms:

Minimum Order Quantity:	200 Rolls
Price:	Depends on Quantity
Packaging Details:	100 Meters per Roll
Supply Ability:	10000 Rolls per Week

Contact Now

Detailed Product Description

Voltage Rating (Uo/U):	450/750V	Temperature Rating:	Fixed: -30°C To +70°C,Flexed: -5°C To +70°C
Minimum Bending Radius:	<12: 5 X Overall Diameter	Sheath Colour:	Red Black Blue Orange Yellow White Green/Yellow Grey Brown Violet Pink
Conductor:	Class 5 Flexible Copper Conductor	Insulation:	PVC (Polyvinyl Chloride)

BS EN 50525-2-31 PVC Electrical Cable Type 2491X for Grounding and Control

Polyvinyl Chloride Red Black PVC Electrical Cable 2491x For Grounding And Control

Application

PVC panel wiring for use in the switch control, relay and

instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

CONSTRUCTION

Conductor

Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)

Insulation

PVC (Polyvinyl Chloride) Type TI1 according to BS EN 50363

CABLE STANDARDS

BS EN 50525-2-31 (previously BS 6004, Cenelec HD21.3),

BS EN/IEC 60332-1-2

National NF C 32-201/3

CHARACTERISTICS

Voltage Rating (Uo/U)

H05V-K: 300/500V

H07V-K: 450/750V

Temperature Rating

Fixed: -30°C to +70°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Flexed: 12 x overall diameter

Sheath Colour

Red Black Blue Orange Yellow White Green/Yellow Grey Brown Violet Pink

Dimensions

H05V-K

Unique PART NO.	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
UNRV0.5	0.5	2.2	9
UNRV0.75	0.8	2.4	11
UNRV1.0	1.0	2.5	14

H07V-K

Unique PART NO.	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
UNRV1.5	1.5	2.9	20
UNRV2.5	2.5	3.6	31
UNRV4	4	4.1	46
UNRV6	6	4.7	75
UNRV10	10	6.1	125
UNRV16	16	7.3	199
UNRV25	25	9	299
UNRV35	35	10.2	421
UNRV50	50	12.1	539
UNRV70	70	13.8	730
UNRV95	95	16.3	973

Color Code

COLOUR	Black	Blue	Grey	Green/ Yellow	Orange	Red	Pink	Yellow	Violet	Brown	White
CODE	BK	BL	GR	GY	OR	RD	PK	YW	VI	BR	WH

CONDUCTORS

Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA	MAXIMUM DIAMETER OF WIRES IN CONDUCTOR	MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
NOMINAL CROSS SECTIONAL AREA	MAXIMUM DIAMETER OF WIRES IN CONDUCTOR	Plain Wires	Metal-Coated Wires
mm²	mm	ohms/km	ohms/km
0.5	0.21	39	40.1
0.75	0.21	26	26.7
1	0.21	19.5	20
1.5	0.26	13.3	13.7
2.5	0.26	7.98	8.21
4	0.31	4.95	5.09
6	0.31	3.3	3.39
10	0.41	1.91	1.95
16	0.41	1.21	1.24
25	0.41	0.78	0.795
35	0.41	0.554	0.565
50	0.41	0.386	0.393
70	0.51	0.272	0.277
95	0.51	0.206	0.21

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity

NOMINAL CROSS SECTIONAL AREA	IN A THERMAL INSULATED WALL		ON A WALL		IN FREE AIR
mm²	2 Core Amps	3 Core Amps	2 Core Amps	3 Core Amps	1 Core Amps
0.5	-	-	-	-	-
0.75	-	-	-	-	15
1	-	-	-	-	19
1.5	14.5	13.5	17.5	15.5	24
2.5	19.5	18	24	21	32
4	26	24	32	28	42
6	34	31	41	36	54
10	46	42	57	50	73
16	61	56	76	68	98
25	80	73	101	89	129
35	99	89	125	110	158
50	119	108	151	134	198
70	151	136	192	171	245
95	182	164	232	207	292
