BS EN/IEC 60502-1 PVC Electrical Cable Type 6381Y PVC Insulated Single Core Cable

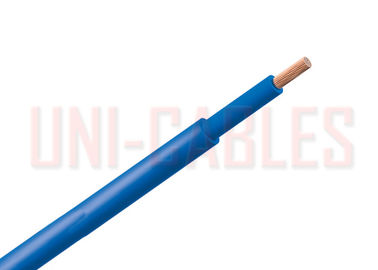

6381Y Insulated Single Core PVC Electrical Cable Sheathed 600 1000V BS 6004



APPLICATION

Flexible single core insulated and sheathed PVC cable.

Suitable for DC power supplies on Telecoms equipment and power applications where flexibility is required.



CONSTRUCTION

Conductor

Class 5 flexible copper conductor to BS EN 60228 (previously BS 6360)

Insulation

PVC (Polyvinyl Chloride) Type TI1 according to BS 7655

Sheath

PVC (Polyvinyl Chloride) Type 6 according to BS 7655



CABLE STANDARDS

1.5mm2 to 35mm2: generally to BS 6004

50mm2 and above: BS EN/IEC 60502-1 BS EN/IEC 60332-1-2



CHARACTERISTIC

Voltage Rating (Uo/U)

1.5mm2 to 35mm2: 450/750V

50mm2 and above: 600/1000V

Temperature Rating

Flexed: -15°C to +70°C

Minimum Bending Radius

Up to 50mm²: 3 x overall diameter

Above 70mm²: 4 x overall diameter





DIMENSIONS

UNIQUE PART NO. NO. OF CORES NOMINAL CROSS SECTIONAL AREA
mm²		 NOMINAL THICKNESS OF INSULATION
mm		 NOMINAL THICKNESS OF SHEATH
mm		 NOMINAL OVERALL DIAMETER
mm		 NOMINAL WEIGHT
kg/km
UNRVV1X1.5 1 1.5 0.9 0.8 4.91 38
UNRVV1X2.5 1 2.5 0.9 0.8 5.35 49
UNRVV1X4 1 4 1 0.9 6.25 71
UNRVV1X6 1 6 1.1 0.9 7.6 101
UNRVV1X10 1 10 1.2 1.1 8.56 152
UNRVV1X16 1 16 1.2 1.1 9.75 215
UNRVV1X25 1 25 1.4 1.1 11.5 307
UNRVV1X35 1 35 1.4 1.1 12.5 405
UNRVV1X50 1 50 1.4 1.4 15.1 580
UNRVV1X70 1 70 1.4 1.4 16.95 769
UNRVV1X95 1 95 1.6 1.5 19.1 1008
UNRVV1X120 1 120 1.6 1.8 21.6 1282
UNRVV1X150 1 150 1.8 1.8 23.4 1571
UNRVV1X185 1 185 2 1.8 25.5 1895
UNRVV1X240 1 240 2.2 1.8 28.5 2435
UNRVV1X300 1 300 2.4 2.0 31.2 3050
UNRVV1X400 1 400 2.6 2.1 35.3 4035



Colour Codes

COLOUR Blue (Blue) Grey (Grey) Green/Yellow (Green/Yellow)
CODE BL/BL GR/GR GY/GY



CONDUCTORS

Class 5 Flexible Copper Conductors

NOMINAL CROSS SECTIONAL AREA
mm²		 MAXIMUM DIAMETER OF WIRES IN CONDUCTOR MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
  mm Plain Wires
ohms/km
1.5 0.26 13.3000
2.5 0.26 7.9800
4 0.31 4.9500
6 0.31 3.3000
10 0.41 1.9100
16 0.41 1.2100
25 0.41 0.7800
35 0.41 0.5540
50 0.41 0.3860
70 0.51 0.2720
95 0.51 0.2060
120 0.51 0.1610
150 0.51 0.1290
185 0.51 0.1060
240 0.51 0.0801
300 0.51 0.0641
400 0.51 0.0486





ELECTRICAL CHARACTERISTICS

Current Carrying Capacity

NOMINAL
CROSS
SECTIONAL
AREA
mm²		 REFERENCE METHOD A
(ENCLOSED IN CONDUIT
IN THERMALLY
INSULATING WALL ETC)
Amps		 REFERENCE METHOD B
(ENCLOSED IN CONDUIT
ON A WALL OR IN
TRUNKING ETC)
Amps		 REFERENCE METHOD C
(CLIPPED DIRECT)
Amps		 REFERENCE METHOD F
(IN FREE AIR OR ON A PERFORATED CABLE TRAY HORIZONTAL
OR VERTICAL)
Amps
Touching Spaced by One Diameter
2 Cables Single-Phase AC
or DC
or 3 Cables Three-Phase
AC flat
2 Cables
Single-Phase
AC or DC		 3 or 4 Cables
Three-Phase
AC		 2 Cables
Single-Phase
AC or DC		 3 or 4 Cables
Three-Phase
AC		 2 Cables
Single-Phase
AC or DC flat
or touching		 3 or 4 Cables
Three-Phase
AC flat and
touching or
trefoil		 2 Cables
Single-Phase
AC or DC flat		 3 Cables
Three-Phase
AC flat		 3 Cables
Three-Phase
AC trefoil		 Horizontal Vertical
1.5 14.5 13.5 17.5 15.5 20 18 - - - - -
2.5 20 18 24 21 27 25 - - - - -
4 26 24 32 28 37 33 - - - - -
6 34 31 41 36 47 43 - - - - -
10 46 42 57 50 65 59 - - - - -
16 61 56 76 68 87 79 - - - - -
25 80 73 101 89 114 104 131 114 110 146 130
35 99 89 125 110 141 129 162 143 137 181 162
50 119 108 151 134 182 167 196 174 167 219 197
70 151 136 192 171 234 214 251 225 216 281 254
95 182 164 232 207 284 261 304 275 264 341 311
120 210 188 269 239 330 303 352 321 308 396 362
150 240 216 300 262 381 349 406 372 356 456 419
185 273 245 341 296 436 400 463 427 409 521 480
240 321 286 400 346 515 472 546 507 485 615 569
300 367 328 458 394 594 545 629 587 561 709 659
400 - - 546 467 694 634 754 689 656 852 795





Voltage Drop

NOMINAL
CROSS
SECTIONAL
AREA
mm2		 2 CABLES DC
mV/A/m		 2 CABLES SINGLE-PHASE AC
mV/A/m		 3 OR 4 CABLES THREE-PHASE AC
mV/A/m
Reference
Methods
A and B
(enclosed in
conduit or
trunking)		 Reference Methods C and F
(clipped direct, on tray or in free air)		 Reference
Methods
A and B
(enclosed in
conduit
or trunking)		 Reference Methods C and F
(clipped direct, on tray or in free air)
Cable Touching Cable Spaced* Cable Touching
Trefoil		 Cable Touching
Flat		 Cable Spaced*
Flat
1.5 29.0 29.0 29.0 29.0 25.0 25.0 25.0 25.0
2.5 18.0 18.0 18.0 18.0 15.0 15.0 15.0 15.0
4 11.0 11.0 11.0 11.0 9.5 9.5 9.5 9.5
6 7.3 7.3 7.3 7.3 6.4 6.4 6.4 6.4
10 4.4 4.4 4.4 4.4 3.8 3.8 3.8 3.8
16 2.8 2.8 2.8 2.8 2.4 2.4 2.4 2.4
    r x z r x z r x z r x z r x z r x z r x z
25 1.75 1.80 0.33 1.80 1.75 0.20 1.75 1.75 0.29 1.80 1.50 0.29 1.55 1.50 0.175 1.50 1.50 0.25 1.55 1.50 0.32 1.55
35 1.25 1.30 0.31 1.30 1.25 0.195 1.25 1.25 0.28 1.30 1.10 0.27 1.10 1.10 0.17 1.10 1.10 0.24 1.10 1.10 0.32 1.15
50 0.93 0.95 0.30 1.00 0.93 0.19 0.95 0.93 0.28 0.97 0.81 0.26 0.85 0.80 0.17 0.82 0.80 0.24 0.84 0.80 0.32 0.86
70 0.63 0.65 0.29 0.72 0.63 0.185 0.66 0.63 0.27 0.69 0.56 0.25 0.61 0.55 0.165 0.57 0.55 0.24 0.60 0.55 0.31 0.63
95 0.46 0.49 0.28 0.56 0.47 0.18 0.50 0.47 0.27 0.54 0.42 0.24 0.48 0.41 0.16 0.43 0.41 0.23 0.47 0.40 0.31 0.51
120 0.36 0.39 0.27 0.47 0.37 0.175 0.41 0.37 0.26 0.45 0.33 0.23 0.41 0.32 0.155 0.36 0.32 0.23 0.40 0.32 0.30 0.44
150 0.29 0.31 0.27 0.41 0.30 0.175 0.34 0.29 0.26 0.39 0.27 0.23 0.36 0.26 0.15 0.30 0.26 0.23 0.34 0.26 0.30 0.40
185 0.23 0.25 0.27 0.37 0.24 0.17 0.29 0.24 0.26 0.35 0.22 0.23 0.32 0.21 0.145 0.26 0.21 0.22 0.31 0.21 0.30 0.36
240 0.18 0.195 0.26 0.33 0.185 0.165 0.25 0.185 0.25 0.31 0.17 0.23 0.29 0.16 0.145 0.22 0.16 0.22 0.27 0.16 0.29 0.34
300 0.145 0.16 0.26 0.31 0.15 0.165 0.22 0.15 0.25 0.29 0.14 0.23 0.27 0.13 0.14 0.19 0.13 0.22 0.25 0.13 0.29 0.32
400 0.105 0.13 0.26 0.29 0.12 0.16 0.20 0.115 0.25 0.27 0.12 0.22 0.25 0.105 0.14 0.175 0.105 0.21 0.24 0.10 0.29 0.31
