UL Standard Flexible Armored Cable , Connection Electronic Polyvinyl Chloride Wire

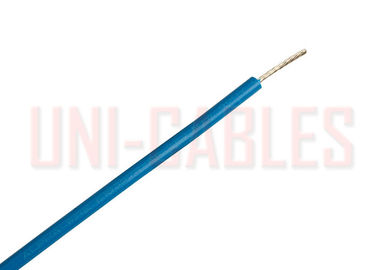

: Large Image : UL Standard Flexible Armored Cable , Connection Electronic Polyvinyl Chloride Wire

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001,UL1581
Model Number:	600V Hook Up

Payment & Shipping Terms:

Minimum Order Quantity:	100 Rolls
Price:	Depends on Quantity
Packaging Details:	100 Meters per Roll
Supply Ability:	10000 Rolls per Week

Contact Now

Detailed Product Description

Rated Voltage:	600 V	Temperature Rating:	105°C
Insulation Colour:	Black Blue Brown Green Grey Yellow White Violet Pink	Conductor:	Tinned Or Bare, Stranded Or Solid Copper
Insulation:	PVC (Polyvinyl Chloride)
Highlight:	ul approved cables , service entrance cable

600V Hook Up Wire PVC Electrical Cable UL Standard Internal Connection Wire

UL Standard Flexible Armored Cable , Connection Electronic Polyvinyl Chloride Wire

APPLICATION

For general purpose internal wiring of electronic and electrical equipment, where exposed to oil at a temperature not exceeding 60°C or 80°C. Uniform insulation thickness of wire to ensure easy stripping and cutting. Resistant to acids, alkalis, oils, moisture and fungi.

CABLE STANDARDS

UL 758, UL 1581, CSA C22-2, UL VW-1, CSA FT1

DIMENSIONS

Size	COND. TYPE	CONDUCTOR			INSULATION		MAX RESISTANCE AT 20°C	MIN. INSULATION RESISTANCE AT 20°C ohms/km	DIELECTRIC STRENGHT AC 1MIN V
Size	COND. TYPE	SPEC AWG	NO. mm	NOMINAL DIAMETER mm	NOMINAL THICKNESS mm	OVERALL DIAMETER mm	MAX RESISTANCE AT 20°C	MIN. INSULATION RESISTANCE AT 20°C ohms/km	DIELECTRIC STRENGHT AC 1MIN V
30AWG	Stranded Conductor	30	7/0.1	0.3	0.79	1.88±0.1	354.24	15	1500
28AWG		28	7/0.127	0.38	0.79	1.96±0.1	223.75
26AWG		26	7/0.16	0.48	0.79	2.06±0.1	136.73
24AWG		24	11/0.16	0.61	0.79	2.19±0.1	93.3
22AWG		22	17/0.16	0.76	0.79	2.34±0.1	55
20AWG		20	26/0.16	0.94	0.79	2.52±0.1	34.6
18AWG		18	41/0.16	1.18	0.79	2.76±0.1	21.8
16AWG		16	26/0.254	1.49	0.79	3.07±0.1	13.7
14AWG		14	41/0.254	1.88	0.79	3.46±0.1	8.62
12AWG		12	65/0.254	2.37	0.79	3.95±0.1	5.43
10AWG		10	105/0.254	3.4	0.79	4.98±0.1	3.41
10AWG		10	49/0.37	3.38	0.79	4.96±0.1	3.41
8AWG		8	168/0.254	4.3	1.15	6.6±0.2	2.16
6AWG		6	266/0.254	5.46	1.52	8.5±0.2	1.39
28AWG	Solid Conductor	28	1/0.32	0.32	0.79	1.9±0.1	227.39	15	1500
26AWG		26	1/0.404	0.404	0.79	1.98±0.1	142.79
24AWG		24	1/0.511	0.511	0.79	2.09±0.1	89.39
22AWG		22	1/0.813	0.643	0.79	2.22±0.1	54.3
20AWG		20	1/1.29	0.813	0.79	2.39±0.1	33.9
18AWG		18	1/1.024	1.024	0.79	2.6±0.1	21.4
16AWG		16	1/1.29	1.29	0.79	2.87±0.1	13.5
