H03VV Flexible Light Duty Cable F BS EN 50525 2 11 For Connecting Domestic Properties

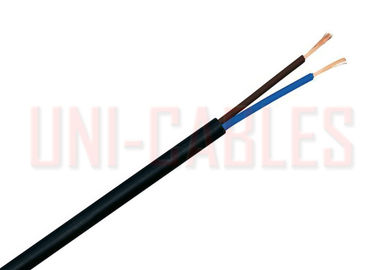

: Large Image : H03VV Flexible Light Duty Cable F BS EN 50525 2 11 For Connecting Domestic Properties

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001
Model Number:	H03VV-F

Payment & Shipping Terms:

Minimum Order Quantity:	100 Rolls
Price:	Depends on Quantity
Packaging Details:	100 Meters per Roll
Supply Ability:	10000 Rolls per Week

Contact Now

Detailed Product Description

Voltage Rating (Uo/U):	300/300V	Temperature Rating:	+5°C To +70°C
Minimum Bending Radius:	6x Overall Diameter	Core Identification:	2 Core: Blue Brown 3 Core: Blue Brown Green/Yellow
Conductor:	Class 5 Flexible Copper Conductor	Sheath Colour:	White Black
Insulation:	PVC (Polyvinyl Chloride)	Sheath:	PVC (Polyvinyl Chloride)
Highlight:	pvc insulated cables , insulated electrical wirepvc

H03VV-F PVC Electrical Cable Light Duty Flexible Cable For Connecting

H03VV Flexible Light Duty Cable F BS EN 50525 2 11 For Connecting Domestic Properties

APPLICATION

H03VV-F under the harmonised European Standard, is a light duty flexible cable designed for use in domestic properties, offices and kitchens. It is suitable for connecting devices with a voltage rating of 300V that are subjected to low mechanical stress such as table lamps, radios and office equipment.

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

PVC/TI2

Sheath

PVC/TM2

CABLE STANDARDS

BS EN 50525-2-11 (previously BS 6500, CENELEC HD21.5),

VDE 281, BS EN/IEC 60332-1-2

DIMENSIONS

UNIQUE PART NO.	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL THICKNESS OF SHEATH	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
UNIQUE PART NO.	NO. OF CORES	mm²	mm	mm	mm	kg/km
H03VV-F2X0.5	2	0.5	0.5	0.6	5.0	37
H03VV-F2X0.75	2	0.75	0.5	0.6	5.5	46
H03VV-F3X0.5	3	0.5	0.5	0.6	5.3	44
H03VV-F3X0.75	3	0.75	0.5	0.6	5.8	55
H03VV-F4X0.5	4	0.5	0.5	0.6	5.8	54

Colour Codes

COLOUR	Black	White
CODE	BK	WH

CONDUCTORS

Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm	MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm	Plain Wires ohms/km
0.5	0.21	39
0.75	0.21	26

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity and Mass Supportable

NOMINAL CROSS SECTIONAL AREA mm²	CURRENT CARRYING CAPACITY		MAXIMUM MASS SUPPORTABLE BY TWIN FLEXIBLE CORD kg
NOMINAL CROSS SECTIONAL AREA mm²	Single-Phase AC Amps	Three-Phase AC Amps	MAXIMUM MASS SUPPORTABLE BY TWIN FLEXIBLE CORD kg
0.5	3	3	2
0.75	6	6	3
