JB - 750 450 / 750V Flexible Control Cable Rated Voltage 1000V Class 5

China JB - 750 450 / 750V Flexible Control Cable Rated Voltage 1000V Class 5 supplier

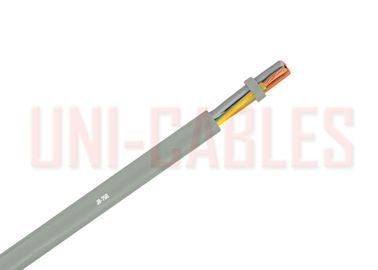

Large Image :  JB - 750 450 / 750V Flexible Control Cable Rated Voltage 1000V Class 5

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: CCC,ISO9001
Model Number: JB-750

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Negotiable
Packaging Details: 100 meters per roll, or 1000 meters per reel
Supply Ability: 10000 per Week
Contact Now
Detailed Product Description
Voltage Rating: 300/500V Temperature Rating: Fixed: -40°C To +80°C Flexed: -5°C To +80°C
Minimum Bending Radius: Flexed: 4 X Overall Diameter Test Voltage: 4000 V
Conductor: Class 5 Flexible Copper Conductor Insulation: PVC Z 7225

JB-750 Cable 450/750V Flexible Control Cable Rated Voltage 1000V Control Cable





APPLICATION

JB-750 cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, as measuring and control cables in tool machinery, conveyor belts, production lines, as well as in machinery production, in air-conditioning and steel production plants. The grounding is located immediately below the outer jacket.



JB cables are suitable for use in all electrical equipment either in dry or damp areas. They should not, however, be installed in the open air.





Cable Construction

  •  Bare copper, fine wire conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  •  Conductors color coded as per JB/OB color code
  •  Green-yellow ground conductor in the outer layer (3 conductors and above)
  •  Conductors stranded in layers with optimal lay-length
  •  Special PVC outer jacket T12, to DIN VDE 0281 part 1
  •  Color: grey (RAL 7001)



Technical Data

  •  Special PVC control cables
  •  Requirements adapted to DIN VDE 0281, 0293, 0295, and IEC 60227-5
  •  To H05VV-F VDE 0281 part 5 and IEC 60227-5 Type 60227 IEC 57
  •  Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F ti +176°F)
  •  Nominal Voltage U0/U 450/750 V
  •  Fixed installation, under protection
    U0/U 600/1000 V
  •  Test Voltage 4000 V
  •  Breakdown Voltage min. 8000 V
  •  Insulation Resistance
    Min. 20 MOhm x km
  •  Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  •  Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)





Description & No. Conductors x cross-sec.
mm2
Outer Diameter Copper weight Weight AWG
mm kg/km ca. kg/km
JB-750 2x2.5 8.8 48 130 14
JB-750 3G2.5 9.3 72 164 14
JB-750 3x2.5 9.3 72 164 14
JB-750 4G2.5 10.2 96 200 14
JB-750 4x2.5 10.2 96 200 14
JB-750 5G2.5 11.4 120 247 14
JB-750 5x2.5 11.4 120 247 14
JB-750 6G2.5 12.6 144 301 14
JB-750 7G2.5 12.6 168 321 14
JB-750 2x4 10.7 76.8 195 12
JB-750 3G4 11.3 115 235 12
JB-750 4G4 12.6 154 295 12
JB-750 5G4 14.1 192 361 12
JB-750 7G4 15.6 269 498 12
JB-750 11G4 20.8 422 767 12
JB-750 3G6 12.7 173 355 10
JB-750 4G6 14.1 230 424 10
JB-750 5G6 15.8 288 525 10
JB-750 7G6 17.6 403 625 10
JB-750 3G10 16.1 290 611 8
JB-750 4G10 17.9 384 701 8
JB-750 5G10 19.9 480 858 8
JB-750 7G10 22.2 672 1106 8
JB-750 3G16 19.7 461 912 6
JB-750 4G16 21.7 614 1035 6
JB-750 5G16 24.4 768 1259 6
JB-750 7G16 26.8 1075 1780 6
JB-750 3G25 24.4 720 1388 4
JB-750 4G25 26.8 960 1581 4
JB-750 5G25 29.9 1200 1997 4
JB-750 3G35 26.5 1080 1767 2
JB-750 4G35 29.4 1344 2105 2
JB-750 5G35 32.7 1680 2636 2
JB-750 3G50 31.8 1440 2556 1
JB-750 4G50 35 1920 2940 1
JB-750 5G50 39.2 2400 3936 1
JB-750 3G70 36.1 2016 3182 2/0
JB-750 4G70 39.9 2688 4090 2/0
JB-750 5G70 44.9 3360 5443 2/0
JB-750 3G95 40.9 2736 4676 3/0
JB-750 4G95 45.4 3648 5540 3/0
JB-750 5G95 50.7 4560 6931 3/0
JB-750 3G120 46.2 3456 5630 4/0
JB-750 4G120 51.6 4608 7000 4/0
JB-750 4G150 58.5 5760 8340 300 kcmil
JB-750 4G185 61.1 7104 9904 350 kcmi
