XLPE Halogen Free Power Cable NA2XH Flame Redundant Aluminum Conductor FRNC 1 KV
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Frequence: | 50HZ | Outer Sheath: | HFFR |
|---|---|---|---|
| Insulation: | XLPE 2XI1 | Gases Corrosivity: | IEC 60754 |
| Sheath Color: | Black | Minimum Installation Temperature: | -20°C |

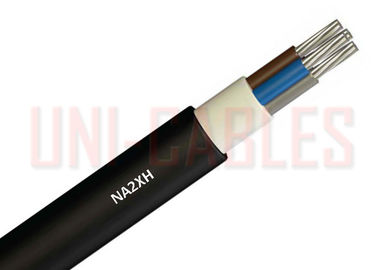

NA2XH Low Voltage Cable Aluminum Conductor FRNC 1 KV Halogen Free Power Cable
APPLICATION
Singlecore or multicore XLPE-insulated cables with aluminium solid/stranded conductor and halogen-free sheath in acc. with DIN VDE 0276-604 Part 5G Flame retardent acc. IEC 60332-1-2.
NA2XH Cable Especially applied in confition of flame redundant; outdoors, in concrete, indoors and in cable ducts where no mechanical damage is to be expected
CONSTRUCTION
Conductor of sector-shaped solid or round solid/stranded aluminium wires
- insulation of cross-linked polyethylene (XLPE)
-extruded halogen-free filling compound
- flame retardant sheath - Polyoelfin-Compound Type HM4
| CONSTRUCTION CHARACTERISTICS | |
|---|---|
| Conductor material | Aluminum |
| Halogen free | IEC 60754 |
| Outer sheath | HFFR (Halogene Free Flame Retardant) |
| ELECTRICAL CHARACTERISTICS | |
| Test voltage | 4kV |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
| Maximum operating voltage | 1.2kV |
| Frequence | 50Hz |
| USAGE CHARACTERISTICS | |
| Minimum installation temperature | -20°C |
| Maximum operating temperature | 90°C |
| Minimum operating temperature | -40°C |
| Short-circuit max. conductor temperature | 250°C |
| Fire retardant | IEC 60332-1 |
| Smoke density | IEC 61034 |
| Gases corrosivity | IEC 60754 |
DIMENSIONS
| No. and Nominal cross sectional area of conductors | Nominal insulation thickness | Nominal sheath thickness | Approx. outer diameter | Approx. cable weight | Maximum conductor resistance at 20OC | Current rating | |
| In Air | Buried | ||||||
| No. x mm2 | mm | mm | mm | kg/km | Ω/km | A | |
| 1x16 | 0.7 | 1.4 | 10.5 | 135 | 1.91 | 74 | 87 |
| 1x25 | 0.9 | 1.4 | 12 | 185 | 1.20 | 108 | 116 |
| 1x35 | 0.9 | 1.4 | 13 | 235 | 0.868 | 132 | 138 |
| 1x50 | 1.0 | 1.4 | 14 | 245 | 0.641 | 162 | 164 |
| 1x70 | 1.1 | 1.4 | 16 | 300 | 0.443 | 206 | 203 |
| 1x95 | 1.1 | 1.5 | 18 | 400 | 0.320 | 254 | 241 |
| 1x120 | 1.2 | 1.5 | 20 | 470 | 0.253 | 297 | 274 |
| 1x150 | 1.4 | 1.6 | 22 | 570 | 0.206 | 341 | 308 |
| 1x185 | 1.6 | 1.7 | 24 | 700 | 0.164 | 395 | 350 |
| 1x240 | 1.7 | 1.8 | 26.5 | 905 | 0.125 | 472 | 406 |
| 1x300 | 1.8 | 1.8 | 29 | 1,100 | 0.100 | 543 | 457 |
| 1x400 | 2.0 | 2.0 | 33 | 1,445 | 0.0778 | 635 | 521 |
| 1x500 | 2.2 | 2.1 | 36 | 1,780 | 0.0605 | 736 | 603 |
| 2 x 16 | 0.7 | 1.8 | 18 | 405 | 1.91 | 74 | 86 |
| 2 x 25 | 0.9 | 1.8 | 21 | 580 | 1.20 | 101 | 111 |
| 2 x 35 | 0.9 | 1.8 | 23.5 | 740 | 0.868 | 122 | 132 |
| 2 x 50 | 1.0 | 1.8 | 26.5 | 910 | 0.641 | 152 | 159 |
| 2 x 70 | 1.1 | 1.9 | 30 | 1,265 | 0.443 | 189 | 195 |
| 2 x 95 | 1.1 | 2.0 | 35 | 1,675 | 0.320 | 232 | 233 |
| 2 x 120 | 1.2 | 2.1 | 38.5 | 2.025 | 0.253 | 270 | 266 |
| 2 x 150 | 1.4 | 2.3 | 42.5 | 2,475 | 0.206 | 308 | 299 |
| 2 x 185 | 1.6 | 2.4 | 47 | 3,020 | 0.164 | 357 | 340 |
| 2 x 240 | 1.7 | 2.6 | 52 | 3,820 | 0.125 | 435 | 401 |
| 3 x 16 | 0.7 | 1.8 | 19 | 450 | 1.91 | 74 | 86 |
| 3 x 25 | 0.9 | 1.8 | 22.5 | 650 | 1.20 | 101 | 111 |
| 3 x 35 | 0.9 | 1.8 | 25 | 845 | 0.868 | 122 | 132 |
| 3 x 50 | 1.0 | 1.9 | 28 | 1,025 | 0.641 | 152 | 159 |
| 3 x 70 | 1.1 | 2.1 | 33 | 1,240 | 0.443 | 189 | 195 |
| 3 x 95 | 1.1 | 2.2 | 37.5 | 1,620 | 0.320 | 232 | 233 |
| 3 x 120 | 1.2 | 2.4 | 41.5 | 2,335 | 0.253 | 270 | 266 |
| 3 x 510 | 1.4 | 2.6 | 46 | 2,830 | 0.206 | 308 | 299 |
| 3 x 185 | 1.6 | 2.7 | 50.5 | 3,445 | 0.164 | 357 | 340 |
| 3 x 240 | 1.7 | 2.7 | 56 | 4,380 | 0.125 | 435 | 401 |
| 4 x 16 | 0.7 | 1.8 | 20.5 | 525 | 1.91 | 74 | 86 |
| 4 x 25 | 0.9 | 1.8 | 24.5 | 760 | 1.20 | 101 | 111 |
| 4 x 35 | 0.9 | 1.8 | 27 | 995 | 0.868 | 122 | 132 |
| 4 x 50 | 1.0 | 1.9 | 31 | 1,250 | 0.641 | 152 | 159 |
| 4 x 70 | 1.1 | 2.1 | 36.5 | 1,830 | 0.443 | 189 | 195 |
| 4 x 95 | 1.1 | 2.2 | 41 | 2,325 | 0.320 | 232 | 233 |
| 4 x 120 | 1.2 | 2.4 | 45.5 | 2,800 | 0.253 | 270 | 266 |
| 4 x 150 | 1.4 | 2.5 | 50 | 3,410 | 0.206 | 308 | 299 |
| 4 x 185 | 1.6 | 2.7 | 56 | 4,130 | 0.164 | 357 | 340 |
| 4 x 240 | 1.7 | 2.9 | 62.5 | 5,380 | 0.125 | 435 | 401 |
| 5 x 16 | 0.7 | 1.8 | 22 | 600 | 1.91 | 74 | 86 |
| 5 x 25 | 0.9 | 1.8 | 26.5 | 870 | 1.20 | 101 | 111 |
| 5 x 35 | 0.9 | 1.9 | 29.5 | 1,170 | 0.868 | 122 | 132 |
| 5 x 50 | 1.0 | 2.0 | 35 | 1,380 | 0.641 | 152 | 159 |
