450 / 750V RVV PVC Electrical Cable Class 2 Copper Conductor Insulated Sheathed Flexible

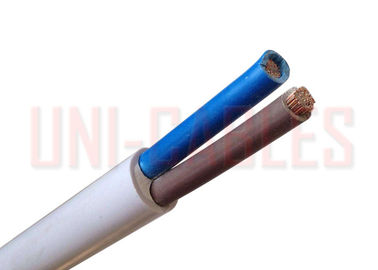

: Large Image : 450 / 750V RVV PVC Electrical Cable Class 2 Copper Conductor Insulated Sheathed Flexible

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001
Model Number:	RVV

Payment & Shipping Terms:

Minimum Order Quantity:	100 Rolls
Price:	Negotiable
Packaging Details:	100 Meters per Roll
Supply Ability:	10000 Rolls per Week

Contact Now

Detailed Product Description

Conductor:	Class 2 Stranded Copper Conductor	Insulation:	PVC 70°C
Voltage Rating (Uo/U):	450/750V	Temperature Rating:	Fixed: 0°C To +70°C
Minimum Bending Radius:	6 X Overall Diameter	Insulation Colour:	Red Black Blue Yellow Orange White Green/Yellow Grey Brown Violet Pink

450/750V RVV PVC Electrical Wire PVC Insulated and Sheathed Flexible Wire

APPLICATION

The cable is suitable to be fixed wireing of power device,power lighting of home electric equipment and instrument, inner wiring of electric enquipment Instrument, electron equipment, automatization device etc.

Suitable for use in conduit and for fixed, protected installation of Wiring Burglar Alarm, Public Address Systems,Intercoms, Telephone Stations, Speakers, Instrumentation, Control and other Low Voltage Circuits that are Power Limited and anti-interference needed

Specification:

1,This cable is produced according to the standard BS6500,IEC60227:1993, VDE 0281

2,BS6360 Class 5,Solid or Stranded Bare Copper Conductor

3,BS7655 TI 1 PVC Insulation

4,PVC Sheathed, color available

Operating Characteristic

1) The rated voltage U0/U: 450V/750

2) The long time allowable working temperature of conductor is not more than 70 °C

3) The ambient temperature for installation is no less than 0 °C.

4)The bending radius of a cable should not be less than 4 times of cable overall diameter below 25mm

and 6 times of that for cable overall diameter no less than 25mm.

DIMENSIONS

Model No.	Conductor		Insualtion		Jacket
	Cores × Nom. Area	Max. Resistance at 20°C	Thickness	Min. Resistance at 70°C	Thickness	Min. Dia.	Max.
	mm²	MΩ/km	mm	MΩ/km	mm	mm	mm
RVV2×0.75	2×0.75	26	0.6	0.011	0.8	6	7.6
RVV2×1.0	2×1.0	19.5	0.6	0.01	0.8	6.4	8
RVV2×1.5	2×1.5	13.3	0.7	0.01	0.8	7.4	9
RVV2×2.5	2×2.5	7.98	0.8	0.009	1	8.9	11
RVV3×0.75	3×0.75	26	0.6	0.011	0.8	6.4	8
RVV3×1.0	3×1.0	19.5	0.6	0.01	0.8	6.8	8.4
RVV3×1.5	3×1.5	13.3	0.7	0.01	0.9	8	9.8
RVV3×2.5	3×2.5	7.98	0.8	0.009	1	9.6	12
RVV4×0.75	4×0.75	26	0.6	0.011	0.8	6.8	8.6
RVV4×1.0	4×1.0	19.5	0.6	0.01	0.9	7.6	9.4
RVV4×1.5	4×1.5	13.3	0.7	0.01	1	9	11
RVV4×2.5	4×2.5	7.98	0.8	0.009	1.1	10.5	13
RVV5×0.75	5×0.75	26	0.6	0.011	0.9	7.4	9.6
RVV5×1.0	5×1.0	19.5	0.6	0.01	0.9	8.3	10
RVV5×1.5	5×1.5	13.3	0.7	0.01	1.1	10	12
RVV5×2.5	5×2.5	7.98	0.8	0.009	1.2	11.5	14
RVV5×2.5	5×2.5	7.98	0.8	0.009	1.2	11.5	14
