Conductor: | Aluminum Alloy 8030 | Insulation: | XLPE |
---|---|---|---|
Rated Voltage: | 0.6/1kv | Temperature: | -40°C To 90°C |
Armore: | Aluminum Inter Lock | Color: | Aluminum White |

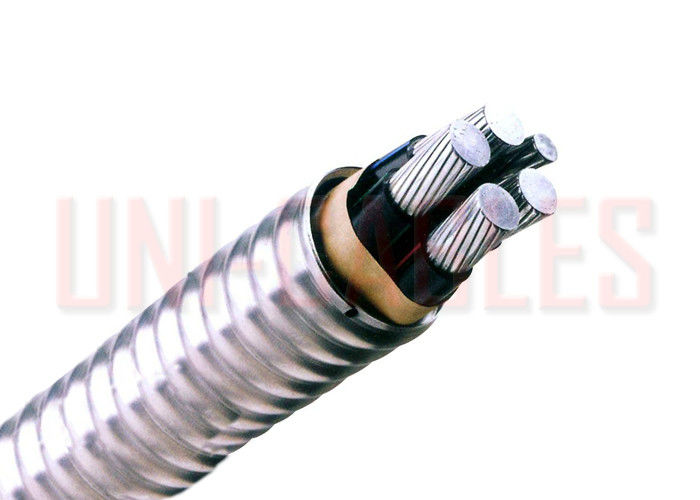

YJHLV6 Aluminum Alloy Cable AA8030 Conductor Aluminum Inter Locked Cable
APPLICATIONS
YJHLV6 armoured cable made of aluminum alloy conductor cross section was from 16 to 400 mm2. Aluminum 5000 series tape interlocked armore, conductor to ASTM B type pressure stranded, 1838.3 GB/T - 2001 flame retardant grade C aluminum alloy cable conductor completely meet GB3956, also accord with GB/T 12706.1 and "the latest version of the standard.
Constructions:
1. Conductor: 8030 Aluminum Alloy Conductor
2. Insulation: XLPE insulation
3. Armored: Interlock Aluminum alloy armored
4. Sheath: Non-sheath
Technical Data:
Shaped extruded aluminum alloy conductor
Flame retardant XLPE insulation
Corrugated polyester tape wrapped
Aluminum interlocking armored sheath
PVC or polyolefin sheath sheath
5000V and above using the . Outer shield
Standard:
IEC60502.1 other standard like AS/NZS, BS, DIN,upon request
Size:
single core cable: 1/0 to 750 kcmil
multi core cable: 6 AWG to 750 kcmil
Voltage degree:
0.6/1KV, 1.8/3KV, 6/6KV, 8.7/15KV, 12/50KV, 26/35KV
DIMENSIONS
Size | Phase Conductor | O.D. | Weight | Resistance @ 20oC | Current(A) | ||
Dia. | Insulation Thickness | mm | kg/km | ≤Ω/km | In Air | In Ground | |
4×16+1×10 | 4.46 | 0.7 | 21 | 427 | 1.91 | 69 | 95 |
4×25+1×16 | 6 | 0.9 | 25.7 | 666 | 1.2 | 88 | 119 |
4×35+1×16 | 7 | 0.9 | 27.9 | 839 | 0.868 | 109 | 140 |
4×50+1×25 | 8.2 | 1 | 32 | 1096 | 0.641 | 133 | 172 |
4×70+1×35 | 10 | 1.1 | 37.9 | 1580 | 0.443 | 168 | 214 |
4×95+1×50 | 11.6 | 1.1 | 42.1 | 2035 | 0.32 | 203 | 259 |
4×120+1×70 | 13 | 1.2 | 47.9 | 2527 | 0.253 | 238 | 294 |
4×150+1×70 | 14.6 | 1.4 | 52.9 | 3130 | 0.206 | 273 | 333 |
4×185+1×95 | 16.2 | 1.6 | 58.1 | 3884 | 0.164 | 291 | 378 |
4×240+1×120 | 18.4 | 1.7 | 64.2 | 4895 | 0.125 | 375 | 441 |
4×300+1×150 | 20.6 | 1.8 | 70.5 | 5988 | 0.1 | 431 | 497 |
4×400+1×185 | 23.8 | 2 | 79.4 | 7672 | 0.0778 | 511 | 574 |
