Conductor: | AA6201 | Voltage: | High Voltage |
---|---|---|---|
Size: | 22-1600 Mm2 | Standard: | NF 34 |
No. Of Wires: | 7-127 Wires | Resistivity: | 52.5% IACS |

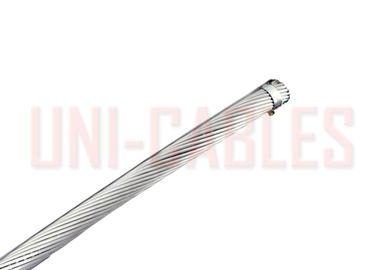

NF 34 French Standard AAAC Conductor Aster 117 Almelec Conductor
APPLICATION
AAAC conductor are made out from aluminum-magnesium-silicon alloy of high
electrical conductivity (min 53% IACS) containing magnesium (0.6-0.9%) & silicon (0.5-0.9%) to give it better mechanical properties after treatment. AAAC conductors are made out of aluminum alloy 6201. AAAC conductor has a better corrosion resistance and better strength to weight ratio and improved electrical conductivity than ACSR conductor on equal diameter basis.
Key Benefits
Physical Contents of Alluminium Alloy :
DIMENSIONS
French Sizes All Aluminum Alloy Conductors ( AAAC ) |
|||||||
Code Name |
Equivalent Copper Area |
Stranding | Overall Diameter |
Total Area | Weight | Rated Strength |
Maximum DC Resistance at 20℃ |
mm2 | No/mm | mm | mm2 | kg/km | kN | Ω /km | |
22 | 11.84 | 7/2.0 | 6 | 21.99 | 60 | 715 | 1.5 |
34.4 | 18 | 7/2.5 | 7.5 | 34.36 | 94 | 1115 | 0.958 |
54.6 | 28.6 | 7/3.15 | 9.45 | 54.55 | 149 | 1775 | 0.603 |
75.5 | 41.3 | 19/2.25 | 11.25 | 75.54 | 208 | 2455 | 0.438 |
117 | 63.9 | 19/2.8 | 14 | 117 | 322 | 3800 | 0.283 |
148 | 80.9 | 19/3.15 | 15.75 | 148.1 | 407 | 4810 | 0.224 |
181.6 | 99.2 | 37/2.5 | 17.5 | 181.6 | 500 | 5900 | 0.183 |
228 | 124.5 | 37/2.8 | 19.6 | 227.8 | 627 | 7405 | 0.146 |
288 | 157.6 | 37/3.15 | 22.05 | 288.3 | 794 | 9370 | 0.115 |
366 | 200.1 | 37/3.55 | 27.85 | 366.2 | 1009 | 11535 | 0.0905 |
570 | 311.6 | 61/3.45 | 31.05 | 570.2 | 1574 | 18530 | 0.0583 |
851 | 464.8 | 91/3.45 | 37.95 | 850.7 | 2354 | 27650 | 0.0391 |
1144 | 624.9 | 91/4.0 | 44 | 1143.5 | 3164 | 36020 | 0.0292 |
1600 | 872.1 | 127/4.0 | 52 | 1595.9 | 4425 | 50270 | 0.0206 |
