Type VVF JIS Standard PVC Insulated Solid Conductor Fixed Wiring Cable

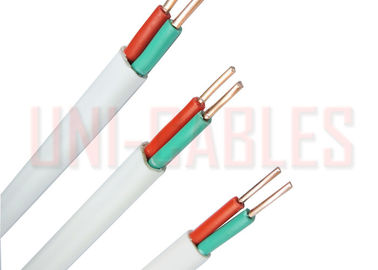

: Large Image : Type VVF JIS Standard PVC Insulated Solid Conductor Fixed Wiring Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001,JIS
Model Number:	VVF

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Meters
Price:	Negotiable
Packaging Details:	100 meters per roll, or 1000 meters per reel
Delivery Time:	10 working days
Supply Ability:	10000 per Week

Contact Now

Detailed Product Description

Voltage Rating:	450/750V	Temperature Rating:	90°C
Minimum Bending Radius:	4 X Cable OD	Conductor:	Class 2 Copper Conductor
Insulation:	PVC	Sheath:	PVC

Type VVF JIS Standard PVC Insulated Solid Conductor Fixed Wiring Cable

Application

VVF cables ared used for exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above ceiling, embedded in plaster.

Reference Standard:

TIS 11-2531

Cable Construction:

Conductor: Solid and stranded annealed copper,

Sizes: 1 mm2 up to 35 mm2

Insulation: Polyvinyl chloride (PVC)
Color : Light grey, Black

Sheath: Polyvinyl chloride (PVC), white color

Technical Characteristics:

Maximum conductor temperature 70oC
Circuit voltage not exceeding 750 volts
Test voltage 2500 volts

Cable Parameter

NO. OF CORES	CONDUCTOR		INSULATION THICKNESS	SHEATH THICKNESS	OVERALL DIAMETER		MAXIMUM CONTINUOUS CURRENT RATING IN FREE AIR	MIN. INSULATION RESISTANCE (AT20OC)	CABLE WEIGHT
	SIZE	NO. & DIA. OF WIRES			OVERALL DIAMETER
	SIZE	NO. & DIA. OF WIRES			LOWER LIMIT	UPPER LIMIT
	MM2	NO./MM	MM	MM	MM	MM	A	MOHM/KM	KG/KM
2	1	1/1.13	0.8	1.4	5.2 x 8.0	6.4 x 9.4	13	0.0141	75
2	1	7/0.40	0.8	1.4	5.4 x 8.0	6.6 x 9.8	13	0.0135	75
2	1.5	1/1.38	0.8	1.4	5.6 x 8.4	6.6 x 10.0	17	0.0123	90
2	1.5	7/0.50	0.8	1.4	5.6 x 8.6	7.0 x 10.5	17	0.0116	90
2	2.5	1/1.78	0.8	1.4	5.8 x 9.2	7.2 x 11.0	22	0.0102	110
2	2.5	7/0.67	0.8	1.4	6.2 x 9.6	7.4 x 11.5	22	0.0093	110
2	4	1/2.25	0.9	1.4	6.6 x 10.5	7.8 x 12.5	30	0.0094	160
2	4	7/0.85	0.9	1.4	6.8 x 11.0	8.2 x 13.0	30	0.0085	160
2	6	7/1.04	0.9	1.4	7.4 x 12.0	8.8 x 14.5	37	0.0073	220
2	10	7/1.35	1.1	1.5	8.8 x 15.0	10.5 x 17.0	52	0.0069	340
2	16	7/1.70	1.1	1.5	9.8 x 17.0	11.5 x 19.5	69	0.0057	480
2	25	7/2.14	1.3	1.6	11.5 x 20.5	13.5 x 23.5	91	0.0054	720
2	35	19/1.53	1.3	1.7	13.0 x 23.0	15.0 x 26.5	112	0.0047	940
