Fiber Brand: | YOFC | Fiber Material: | Silicon Dioxide |
---|---|---|---|
Fiber Type: | G652D, G657A1, G657A2 | Fiber Color: | Black Or Customize |
Jacket: | PVC, LSZH, OFNR, OFNP | Fiber Count: | 24 Core |

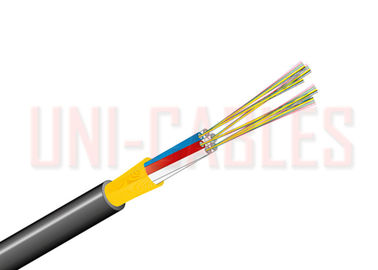

Outdoor ADSS 48 Core ADSS Fiber Optic Cable Single mode or multimode fibers
Product Description
Single mode or multimode fibers, meeting or exceeding the pertinent IEC*, ITU and EIA/TIA specifications. Up to 24 fibers are enclosed in a PBT tube. The fibers are colour coded for easy identification. The tube is filled with water blocking, thixotropic gel to prevent the ingress of water. Dry water swelling glass yarn is laid over the tube to serve as peripheral strength members and to block the cable from water penetration.
Cable Structure and Parameter
|
||
Fiber Count 48 core fiber optic cable
|
12
|
48
|
Number of tube & Fillers
|
1+4
|
4+1
|
Fiber number per tube
|
12
|
12
|
Central strength member, FRP diameter (mm)
|
1.5
|
1.5
|
PBT Loose tube diameter (mm)
|
2.0
|
2.0
|
Sheath thickness (mm) 48 core fiber optic cable
|
1.8
|
1.8
|
Cable diameter (mm) 48 core fiber optic cable
|
10.2
|
10.2
|
Cable weight (kg/km)
|
100
|
105
|
Tensile strength(N) while fiber strain is ≤0.33%
|
3000
|
3000
|
