Conductor: | Fine-stranded Copper Conductor | Insulation: | PE (Polyethylene) |
---|---|---|---|
Sheath: | FRNC (Flame Retardant Non Corrosive) Type HM2 | Voltage Rating: | Voltage Rating |
Temperature Rating: | Flexed: +5°C To +70°C | Minimum Bending Radius: | Fixed: 7.5 X Overall Diameter |
Operating Capacity: | 70nF/km | Sheath Colour: | Grey |

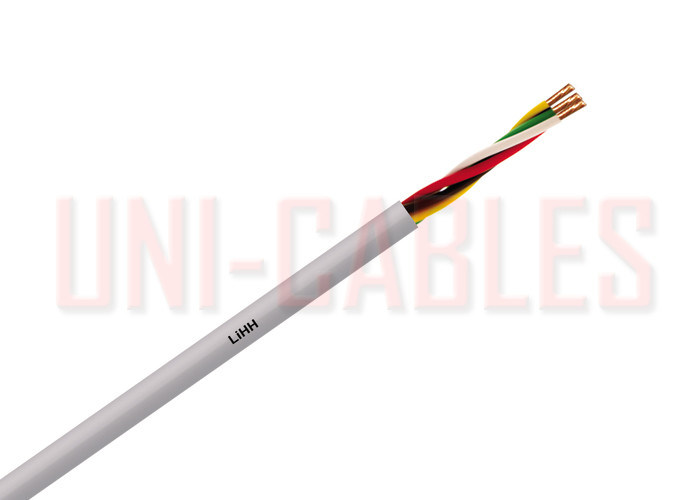

IEC 60754 Standard Control Cable Type LiHH LSZH CU/PE/PVC flexible wire
APPLICATION
LSZH (Low Smoke Zero Halogen) electronic cables are used for connection and signal transfer in measuring and control equipment. For indoor installation in dry and wet rooms, for installation under plaster.
DIMENSIONS
UNI-CABLES PART NO. |
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
|
UNI200014 | 2 | 0.14 | 3.3 | 13 | |
UNI200025 | 2 | 0.25 | 3.6 | 20 | |
UNI200034 | 2 | 0.34 | 4.3 | 26 | |
UNI200050 | 2 | 0.5 | 4.5 | 30 | |
UNI20075 | 2 | 0.75 | 5.2 | 40 | |
UNI2010 | 2 | 1 | 5.8 | 50 | |
UNI2015 | 2 | 1.5 | 7 | 59 | |
UNI300014 | 3 | 0.14 | 3.5 | 16 | |
UNI300025 | 3 | 0.25 | 3.8 | 23 | |
UNI300034 | 3 | 0.34 | 4.5 | 30 | |
UNI300050 | 3 | 0.5 | 4.8 | 36 | |
UNI30075 | 3 | 0.75 | 5.5 | 54 | |
UNI3010 | 3 | 1 | 6.1 | 57 | |
UNI3015 | 3 | 1.5 | 7.4 | 72 | |
UNI400014 | 4 | 0.14 | 3.7 | 18 | |
UNI400025 | 4 | 0.25 | 4.1 | 27 | |
UNI400034 | 4 | 0.34 | 4.8 | 38 | |
UNI400050 | 4 | 0.5 | 5.2 | 44 | |
UNI40075 | 4 | 0.75 | 6.1 | 60 | |
UNI4010 | 4 | 1 | 6.6 | 67 | |
UNI4015 | 4 | 1.5 | 8 | 87 | |
UNI500014 | 5 | 0.14 | 4.1 | 22 | |
UNI500025 | 5 | 0.25 | 4.5 | 32 | |
UNI500034 | 5 | 0.34 | 5.3 | 44 | |
UNI500050 | 5 | 0.5 | 6.1 | 57 | |
UNI50075 | 5 | 0.75 | 6.7 | 73 | |
UNI5010 | 5 | 1 | 7.5 | 82 | |
UNI600014 | 6 | 0.14 | 4.2 | 25 | |
UNI600025 | 6 | 0.25 | 4.9 | 39 | |
UNI700014 | 7 | 0.14 | 4.4 | 26 | |
UNI700025 | 7 | 0.25 | 5 | 41 | |
UNI700034 | 7 | 0.34 | 6.1 | 59 | |
UNI700050 | 7 | 0.5 | 6.4 | 71 | |
UNI70075 | 7 | 0.75 | 7.3 | 91 | |
UNI800014 | 8 | 0.14 | 4.8 | 30 | |
UNI800025 | 8 | 0.25 | 6.4 | 50 | |
UNI800034 | 8 | 0.34 | 6.2 | 65 | |
UNI10014 | 10 | 0.14 | 5.5 | 36 | |
UNI10025 | 10 | 0.25 | 6.3 | 58 | |
UNI10034 | 10 | 0.34 | 7.7 | 80 | |
UNI10050 | 10 | 0.5 | 8.3 | 101 | |
UNI10075 | 10 | 0.75 | 9.5 | 137 | |
UNI12014 | 12 | 0.14 | 6.1 | 44 | |
UNI12025 | 12 | 0.25 | 6.5 | 66 | |
UNI12034 | 12 | 0.34 | 7.9 | 94 | |
UNI12050 | 12 | 0.5 | 8.6 | 117 | |
UNI12075 | 12 | 0.75 | 10.2 | 166 | |
UNI15014 | 15 | 0.14 | 6.5 | 57 | |
UNI15025 | 15 | 0.25 | 7.3 | 80 | |
UNI15034 | 15 | 0.34 | 8.8 | 115 | |
UNI15050 | 15 | 0.5 | 9.5 | 145 | |
UNI16025 | 16 | 0.25 | 7.4 | 85 | |
UNI18014 | 18 | 0.14 | 6.9 | 65 | |
UNI18025 | 18 | 0.25 | 7.9 | 95 | |
UNI18034 | 18 | 0.34 | 9.6 | 135 | |
UNI18050 | 18 | 0.5 | 10.5 | 171 | |
UNI20014 | 20 | 0.14 | 7.8 | 73 | |
UNI21014 | 21 | 0.14 | 7.9 | 76 | |
UNI21025 | 21 | 0.25 | 8.6 | 105 | |
UNI21034 | 21 | 0.34 | 10.4 | 154 | |
UNI21050 | 21 | 0.5 | 11.3 | 197 | |
UNI25014 | 25 | 0.14 | 8.3 | 90 | |
UNI25025 | 25 | 0.25 | 9.2 | 130 | |
UNI25034 | 25 | 0.34 | 11.4 | 180 | |
UNI25050 | 25 | 0.5 | 12.4 | 230 | |
UNI30014 | 30 | 0.14 | 8.8 | 98 | |
UNI30050 | 30 | 0.5 | 13.1 | 269 | |
UNI34014 | 34 | 0.14 | 9.2 | 111 | |
UNI34025 | 34 | 0.25 | 10.8 | 168 | |
UNI34034 | 34 | 0.34 | 12.8 | 233 | |
UNI34050 | 34 | 0.5 | 13.8 | 301 | |
UNI40014 | 40 | 0.14 | 10.4 | 139 | |
UNI40025 | 40 | 0.25 | 11.4 | 196 | |
UNI40034 | 40 | 0.34 | 13.7 | 272 | |
UNI40050 | 40 | 0.5 | 15.2 | 365 | |
UNI50014 | 50 | 0.14 | 12.5 | 764 |
Core Identification
The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of
publication. When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
