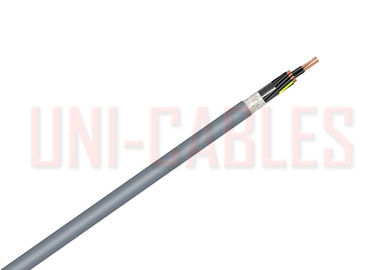

TCWB BS EN 50525 - 2 - 51 CY PVC Electrical Control Cable Black With White Numbers
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Voltage Rating (Uo/U): | 300/500V | Temperature Rating: | Operating: -30°C To +80°C |
|---|---|---|---|
| Minimum Bending Radius: | Fixed: 6 X Overall Diameter | Core Identification: | Black With White Numbers |
| Sheath Colour: | Grey | Conductor: | Class 5 Flexible Copper Conductor |
| Insulation: | PVC (Polyvinyl Chloride) | Screen: | TCWB (Tinned Copper Wire Braid) |
| Sheath: | PVC (Polyvinyl Chloride) |
BS EN 50525-2-51 Standard Control Cable Type CY PVC Screened Wire
APPLICATION
Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use when temporarily moved, and in conditions of medium mechanical stress. Can be used outdoors when protected against direct sunlight, and in dry or damp conditions indoors.
CY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.
CABLE STANDARDS
Generally to BS EN 50525-2-51, BS EN/IEC 60332-1
DIMENSIONS
| UNI-Cables PART NO. |
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
| UNI02005CY | 2 | 0.5 | 5.7 | 35 |
| UNI020075CY | 2 | 0.75 | 6.1 | 45 |
| UNI02010CY | 2 | 1 | 6.3 | 57 |
| UNI02015CY | 2 | 1.5 | 7.3 | 69 |
| UNI02025Y | 2 | 2.5 | 8.7 | 107 |
| UNI03005CY | 3 | 0.5 | 6 | 48 |
| UNI030075CY | 3 | 0.75 | 6.4 | 63 |
| UNI03010CY | 3 | 1 | 6.6 | 72 |
| UNI03015CY | 3 | 1.5 | 7.7 | 95 |
| UNI03025CY | 3 | 2.5 | 9.2 | 140 |
| UNI04005CY | 4 | 0.5 | 6.4 | 62 |
| UNI040075CY | 4 | 0.75 | 6.9 | 76 |
| UNI04010CY | 4 | 1 | 7.1 | 89 |
| UNI04015CY | 4 | 1.5 | 8.4 | 118 |
| UNI04025CY | 4 | 2.5 | 10 | 172 |
| UNI04040CY | 4 | 4.0 | 14.4 | 304 |
| UNI05005CY | 5 | 0.5 | 6.9 | 73 |
| UNI050075CY | 5 | 0.75 | 7.5 | 89 |
| UNI05010CY | 5 | 1 | 7.7 | 107 |
| UNI05015CY | 5 | 1.5 | 9.1 | 141 |
| UNI05025CY | 5 | 2.5 | 10.9 | 216 |
| UNI07005CY | 7 | 0.5 | 7.5 | 89 |
| UNI070075CY | 7 | 0.75 | 8.1 | 113 |
| UNI07010CY | 7 | 1 | 8.4 | 139 |
| UNI07015CY | 7 | 1.5 | 9.9 | 181 |
| UNI07025CY | 7 | 2.5 | 11.9 | 283 |
| UNI12005CY | 12 | 0.5 | 9.6 | 141 |
| UNI120075CY | 12 | 0.75 | 10.4 | 181 |
| UNI12010CY | 12 | 1 | 10.8 | 230 |
| UNI12015CY | 12 | 1.5 | 12.9 | 307 |
| UNI180075CY | 18 | 0.75 | 12.1 | 274 |
| UNI18010CY | 18 | 1 | 12.6 | 331 |
CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables
| NOMINAL CROSS SECTIONAL AREA | MAXIMUM RESISTANCE OF CONDUCTOR AT 200C |
| mm² | Plain Wires ohms/km |
| 0.5 | 39 |
| 0.75 | 26 |
| 1 | 19.5 |
| 1.5 | 13.3 |
| 2.5 | 7.98 |
ELECTRICAL CHARACTERISTICS
Current Carrying Capacity at 30ºC
| NOMINAL CROSS SECTIONAL AREA mm² |
CURRENT RATING Amps |
| 0.5 | 9 |
| 0.75 | 12 |
| 1 | 15 |
| 1.5 | 18 |
| 2.5 | 26 |
DE-RATING FACTORS
| NO. OF CORES | 5 | 7 | 10 | 14 | 19 | 24 | 44 | 48 |
| DE-RATING FACTOR | 0.72 | 0.63 | 0.56 | 0.51 | 0.45 | 0.42 | 0.34 | 0.33 |
