250V VDE 0482-332 - 1 - 2 LiHCH TCWB Cable Grey Class 5 FRNC Copper Conductor

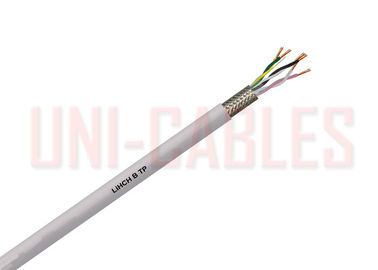

: Large Image : 250V VDE 0482-332 - 1 - 2 LiHCH TCWB Cable Grey Class 5 FRNC Copper Conductor

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001
Model Number:	LiHCH LSZH

Payment & Shipping Terms:

Minimum Order Quantity:	2000 Meters
Price:	US$0.25-5.2 per M
Packaging Details:	100 meters per roll, or 1000 meters per reel
Supply Ability:	140000 per Week

Contact Now

Detailed Product Description

Voltage Rating (Uo/U):	250V	Temperature Rating:	Operating: -30°C To +70°C
Minimum Bending Radius:	Fixed:7.5 X Overall Diameter	Operating Capacity:	120nF/km
Sheath Colour:	Grey	Conductor:	Class 5 Flexible Copper Conductor
Insulation:	FRNC (Flame Retardant Non Corrosive)	Screen:	TCWB (Tinned Copper Wire Braid)
Sheath:	FRNC (Flame Retardant Non Corrosive)

VDE 0482-332-1-2 Flexible Control Cable Type LiHCH TCWB Cable

250V VDE 0482-332 - 1 - 2 LiHCH TCWB Cable Grey Class 5 FRNC Copper Conductor

APPLICATION

For signal transmission between electronic devices, in computer systems or process control units with requirements to electromagnetic compatibility.

CABLE STANDARDS

VDE 0482-332-1-2/IEC 60332-1, EN 50267, IEC 60754

250V VDE 0482-332 - 1 - 2 LiHCH TCWB Cable Grey Class 5 FRNC Copper Conductor

DIMENSIONS

UNI-Cables PART NO.	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
UNILiHCH200014	2	0.14	4.1	22
UNILiHCH200025	2	0.25	4.7	24
UNILiHCH200034	2	0.34	5.1	30
UNILiHCH200050	2	0.5	5.8	38
UNILiHCH20075	2	0.75	6.2	45
UNILiHCH2010	2	1	6.5	72
UNILiHCH2015	2	1.5	7.7	90
UNILiHCH300014	3	0.14	4.3	25
UNILiHCH300025	3	0.25	4.9	29
UNILiHCH300034	3	0.34	5.3	33
UNILiHCH300050	3	0.5	6.1	47
UNILiHCH30075	3	0.75	6.5	60
UNILiHCH3010	3	1	7	90
UNILiHCH3015	3	1.5	8.1	115
UNILiHCH400014	4	0.14	4.5	28
UNILiHCH400025	4	0.25	5.2	35
UNILiHCH400034	4	0.34	5.9	59
UNILiHCH400050	4	0.5	6.5	62
UNILiHCH40075	4	0.75	7.2	92
UNILiHCH4010	4	1	7.5	109
UNILiHCH4015	4	1.5	8.7	153
UNILiHCH500014	5	0.14	4.8	32
UNILiHCH500025	5	0.25	5.8	41
UNILiHCH500034	5	0.34	6.4	56
UNILiHCH500050	5	0.5	7.2	76
UNILiHCH50075	5	0.75	7.8	97
UNILiHCH5010	5	1	8.2	126
UNILiHCH5015	5	1.5	9.5	176
UNILiHCH600014	6	0.14	5.1	35
UNILiHCH600025	6	0.25	6.2	49
UNILiHCH600034	6	0.34	7	59
UNILiHCH600050	6	0.5	7.8	84
UNILiHCH700014	7	0.14	5.2	39
UNILiHCH700025	7	0.25	6.3	51
UNILiHCH700034	7	0.34	7.1	75
UNILiHCH700050	7	0.5	7.9	86
UNILiHCH70075	7	0.75	8.5	120
UNILiHCH7010	7	1	8.8	171
UNILiHCH7015	7	1.5	10.7	220
UNILiHCH800014	8	0.14	6	41
UNILiHCH800025	8	0.25	7.3	58
UNILiHCH800034	8	0.34	8	84
UNILiHCH800050	8	0.5	8.9	135
UNILiHCH100014	10	0.14	6.4	56
UNILiHCH100025	10	0.25	7.7	81
UNILiHCH100034	10	0.34	8.9	106
UNILiHCH100050	10	0.5	9.5	129
UNILiHCH10075	10	0.75	10.7	169
UNILiHCH120014	12	0.14	6.8	74
UNILiHCH120025	12	0.25	7.9	117
UNILiHCH120034	12	0.34	9.1	133
UNILiHCH120050	12	0.5	9.8	148
UNILiHCH120075	12	0.75	11.1	196
UNILiHCH160014	16	0.14	7.2	90
UNILiHCH160025	16	0.25	8.6	124
UNILiHCH160034	16	0.34	9.6	160
UNILiHCH180025	18	0.25	9	126
UNILiHCH180050	18	0.5	11.7	210
UNILiHCH180075	18	0.75	12.7	327
UNILiHCH250014	25	0.14	9.4	135
UNILiHCH250025	25	0.25	10.9	161
UNILiHCH250034	25	0.34	12.5	232
UNILiHCH250050	25	0.5	13.9	319
UNILiHCH250075	25	0.75	15.5	454
