BS EN IEC 60332 - 1 - 2 Grey Flexible Control Cable LiYCY Screened Twisted Pair

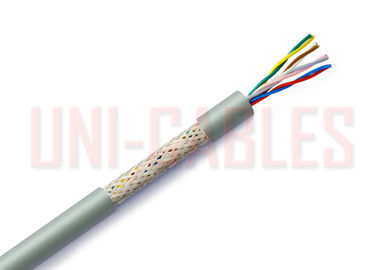

: Large Image : BS EN IEC 60332 - 1 - 2 Grey Flexible Control Cable LiYCY Screened Twisted Pair

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	CCC,ISO9001
Model Number:	LiYCY TP

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Meters
Price:	Depends on Quantity
Packaging Details:	100 meters per roll, or 1000 meters per reel
Supply Ability:	120000 per Week

Contact Now

Detailed Product Description

Voltage Rating:	0.14mm²: 350V Above 0.14mm²: 500V	Test Voltage:	0.14mm²: 800V Above 0.14mm²: 1200V
Temperature Rating:	Fixed: -40°C To +80°C Flexed: -5°C To +50°C	Minimum Bending Radius:	Flexed: 10 X Overall Diameter
Sheath Colour:	Grey	Conductor:	Fine-stranded Copper Conductor
Insulation:	PVC (Polyvinyl Chloride)	Separator:	Plastic Foil Tape
Screen:	TCWB (Tinned Copper Wire Braid)	Sheath:	PVC (Polyvinyl Chloride)
Highlight:	flat control cable , oil resistant cable

BS EN/IEC 60332-1-2 Flexible Control Cable LiYCY Screened Twisted Pair Cable

BS EN IEC 60332 - 1 - 2 Grey Flexible Control Cable LiYCY Screened Twisted Pair

APPLICATION

To be installed in dry and humid rooms and used as a termination and connection cable in the control, measuring and signal technology.

CABLE STANDARDS

Generally to DIN VDE 0812, BS EN/IEC 60332-1-2

BS EN IEC 60332 - 1 - 2 Grey Flexible Control Cable LiYCY Screened Twisted Pair

DIMENSIONS

UNI-Cables PART NO.	NO. OF PAIRS	NOMINAL CROSS SECTIONAL AREA	CONDUCTOR CONSTRUCTION		CONDUCTOR LOOP RESISTANCE	OVERALL DIAMETER	NOMINAL WEIGHT
UNI-Cables PART NO.	NO. OF PAIRS	mm²	No. of Strands	Strand Diameter mm	ohms/km	mm	kg/km
UNILiYCYTPT200014	2	0.14	18	0.1	276	5.8	34
UNILiYCYTPT200025	2	0.25	14	0.16	151	6.6	46
UNILiYCYTPT200034	2	0.34	19	0.16	115	7.5	64
UNILiYCYTPT20050	2	0.5	16	0.21	75.6	8.2	75
UNILiYCYTPT20075	2	0.75	24	0.21	50.6	8.6	106
UNILiYCYTPT300014	3	0.14	18	0.1	276	6.2	43
UNILiYCYTPT300025	3	0.25	14	0.16	151	7	64
UNILiYCYTPT300034	3	0.34	19	0.16	115	7.9	86
UNILiYCYTPT30050	3	0.5	16	0.21	75.6	8.7	98
UNILiYCYTPT30075	3	0.75	24	0.21	50.6	9.5	140
UNILiYCYTPT400014	4	0.14	18	0.1	276	6.8	50
UNILiYCYTPT400025	4	0.25	14	0.16	151	7.6	73
UNILiYCYTPT400034	4	0.34	19	0.16	115	8.5	113
UNILiYCYTPT40050	4	0.5	16	0.21	75.6	9.3	123
UNILiYCYTPT40075	4	0.75	24	0.21	50.6	10.8	179
UNILiYCYTPT500014	5	0.14	18	0.1	276	7.7	70
UNILiYCYTPT500025	5	0.25	14	0.16	151	8.4	88
UNILiYCYTPT600014	6	0.14	18	0.1	276	7.9	81
UNILiYCYTPT600025	6	0.25	14	0.16	151	8.6	98
UNILiYCYTPT60050	6	0.5	16	0.21	75.6	10.8	162
UNILiYCYTPT60075	6	0.75	24	0.21	50.6	12.5	246
UNILiYCYTPT800014	8	0.14	18	0.1	276	8.6	93
UNILiYCYTPT800025	8	0.25	14	0.16	151	9.4	118
UNILiYCYTPT80050	8	0.5	16	0.21	75.6	11.8	190
UNILiYCYTPT80075	8	0.75	24	0.21	50.6	14.6	300
UNILiYCYTPT1000014	10	0.14	18	0.1	276	9.5	115
UNILiYCYTPT1000025	10	0.25	14	0.16	151	10.7	165
UNILiYCYTPT1200014	12	0.14	18	0.1	276	9.9	125
UNILiYCYTPT120050	12	0.5	16	0.21	75.6	14	342
UNILiYCYTPT12075	12	0.75	24	0.21	50.6	17.8	433
UNILiYCYTPT1600014	16	0.14	18	0.1	276	11.2	148
UNILiYCYTPT16075	16	0.75	24	0.21	50.6	18.7	564
