Voltage Rating: | 600/1000V | Test Voltage: | 4kV |
---|---|---|---|
Minimum Bending Radius: | Fixed: 10 X Overall Diameter Flexed: 25 X Overall Diameter | Conductor: | Class 5 Flexible Copper Conductor |
Insulation: | PVC V90 | Sheath: | PVC 5V90 |

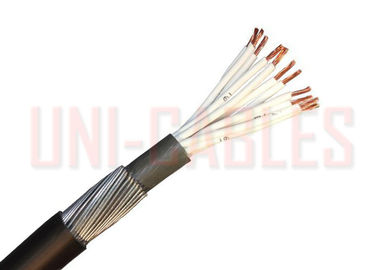

Australian Standard Multicore+E Armored Control Cables 0.6/1kV PVC Insulated PVC Sheathed
Application
These cables are used for control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where mechanical damage may occur.
Cable Standards
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125
Cable Construction
Conductor: Plain annealed copper.
Insulation: Polyvinylchloride compound PVC V-90.
Insulation colour: White(black letter numbered), Green/yellow
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Orange, other colors are available upon request
Technical Characteristics
Conductor | Current Ratings | Electrical Characteristics | |||||
Nominal Area mm2 | Unenclosed In Air A |
Buried Direct A | Buried In Ducts A |
Maximum DC Resistance @20°C Ohm/km |
Maximum AC Resistance @75°C Ohm/km |
Reactance Ohm/km | Three Phase Voltage Drop @75°C mV/Am |
1.5mm2 | |||||||
2C+E | 18 | 14 | 22 | 13.6 | 16.5 | 0.111 | 33.0 |
3-50C+E | 15 | 13 | 19 | 13.6 | 16.5 | 0.111 | 33.0 |
2.5mm2 | |||||||
2C+E | 26 | 20 | 31 | 7.41 | 9.01 | 0.102 | 18.0 |
3-50C+E | 22 | 18 | 26 | 7.41 | 9.01 | 0.102 | 18.0 |
Cable Parameter
No. of Cores | Conductor No./ OD | Nom. insulation thickness mm | Nom. earth conductor area mm2 |
Nom. earth conductor insulation thickness mm |
Nom. diameter over bedding mm |
Armour diameter mm | Nom. overall diameter mm | Approx. mass kg/km |
1.5mm2 | ||||||||
2C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 9.0 | 0.90 | 14.5 | 405 |
3C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 9.8 | 0.90 | 15.4 | 440 |
4C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 10.7 | 0.90 | 16.3 | 550 |
6C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 11.7 | 0.90 | 17.3 | 690 |
8C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 13.6 | 1.25 | 19.9 | 770 |
10C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 14.9 | 1.25 | 21.2 | 920 |
12C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 16.2 | 1.25 | 22.5 | 1010 |
15C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 17.1 | 1.60 | 23.4 | 1110 |
20C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 19.0 | 1.60 | 26.0 | 1535 |
25C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 21.7 | 1.60 | 28.7 | 1670 |
30C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 23.5 | 1.60 | 30.4 | 1840 |
40C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 26.4 | 1.60 | 34.8 | 2260 |
50C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 28.9 | 1.60 | 36.1 | 2400 |
2.5mm2 | ||||||||
2C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 10.0 | 0.90 | 11.6 | 210 |
3C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 10.9 | 0.90 | 12.6 | 250 |
4C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 12.0 | 0.90 | 13.7 | 285 |
6C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 13.1 | 1.25 | 14.8 | 365 |
8C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 15.3 | 1.25 | 18.4 | 455 |
10C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 16.8 | 1.25 | 19.9 | 530 |
12C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 18.3 | 1.60 | 20.0 | 605 |
15C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 19.3 | 1.60 | 21.0 | 715 |
20C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 21.5 | 1.60 | 25.7 | 950 |
25C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 24.6 | 1.60 | 26.3 | 1095 |
30C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 26.6 | 1.60 | 28.3 | 1200 |
40C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 30.4 | 2.0 | 33.5 | 1565 |
50C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 33.3 | 2.0 | 35.0 | 1925 |
