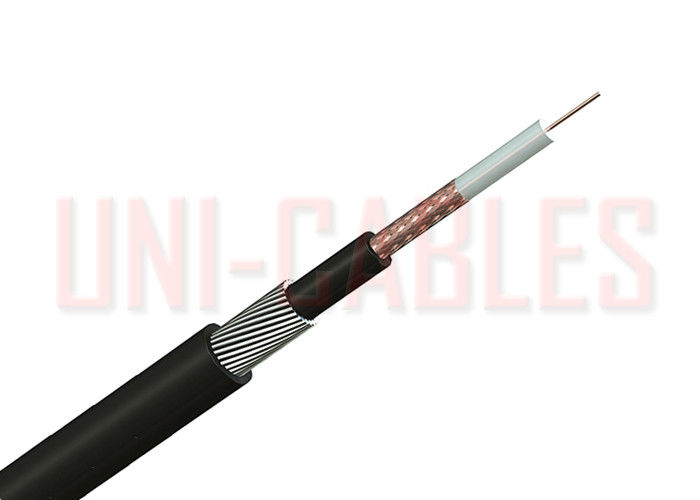

Solid PE Coaxial Outdoor Armoured Electrical Cable SWA For Communication

OUTDOOR SWA COAX CABLE EXTERNAL ARMOURED SATELLITE CABLE

APPLICATION

For communication and signal control systems

These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine
environments.

RG59 Coax cables are suitable for many applications including low power video, video signaland broadband signals. RG59 SWA has steel wire armour protection and can be buried underground.

Standards: BS5467

Flame propagation: BS EN 60332-3

Conductor: Stranded Plain Annealed Copper Conductors

Insulation: XLPE

Insulation Colours:

Bedding: PVC

Armouring: Galvanised Steel Wire Armour

Sheath: PVC

Sheath Colour: Black

Voltage Rating: 600/1000 Volts

Temperature Rating: -15°C to +90°C

Minimum Bending Radius: 8 x overall diameter

Should not be installed at temperatures below 0°C or above +60°C

Conductor: Bare Copper

Insulation: Solid PE

Braiding: Bare copper

Bedding: PVC

Armour: SWA

Jacket: PVC

Conductor size: 0.58 ± 0.01

Stranded diameter: 0.58mm

Insulation thickness: 1.55

Insulation diameter: 3.70 ± 0.15

Insulation colour: Natural

Braiding coverage: >=80%

Jacket thickness: 0.80mm

Diameter: 6.10 ± 0.80mm

Jacket colour: Black

Armour diameter: 7.9

Jacket thickness: 1.40mm

Jacket diameter: 10.70 ± 0.15mm

Jacket colour: Black

Max conductor DC resistance: At 20°C: 71.8 Ω/km

Min insulation DC resistance: At 20°C: 1000 MΩ*Km

Rated temperature: -20°C to 80°C

Capacitance: <70 pF/m

Velocity ratio: 66.7%

Impedance: 75 Ω +/- 3
