638TQ / H07BN4-F Rubber Flexible Cable HOFR Trailing WIth Annealed Copper Conductor

Certification
Good quality Medium Voltage Cable for sales
Good quality Medium Voltage Cable for sales
I'm Online Chat Now

638TQ / H07BN4-F Rubber Flexible Cable HOFR Trailing WIth Annealed Copper Conductor

China 638TQ / H07BN4-F Rubber Flexible Cable HOFR Trailing WIth Annealed Copper Conductor supplier

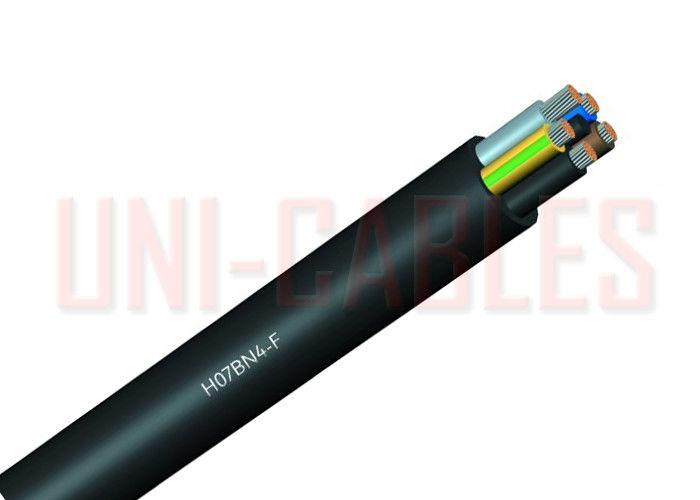

Large Image :  638TQ / H07BN4-F Rubber Flexible Cable HOFR Trailing WIth Annealed Copper Conductor

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: 638TQ/H07BN4-F

Payment & Shipping Terms:

Minimum Order Quantity: 100 Meters
Price: Negotiable
Packaging Details: 100 Meters per Coil
Delivery Time: 15-20 Working days
Supply Ability: 6000 Meters per Week
Contact Now
Detailed Product Description
Conductor: Tinned Annealed Flexible Copper, Class 5 Insulation: EPR
Sheath: CSP Voltage: 450/750V
Temperature Rating: -25°C To +90°C Min Bending Radius: 5 X Diameter

638TQ / H07BN4-F Cable Rubber Flexible Cable HOFR Trailing Flexible Cable



APPLICATION

638*TQ Cable manufactured to BS7919 and available in sizes 25mm to 630mm. The cable features tinned annealed flexible copper conductors, ethylene propylene rubber (EPR) insulated, chlorosulphonated polyethylene (CSP) outer sheath. Black. 450/750 volts grade to BS7919. Heat and oil resistant and flame retardant (HOFR). Flame retardant to BS EN 60332-1-2 (BS EN 50265-2-1). Harmonised code H07BN4-F.



638*TQ cable is ideal for connecting equipment such as pumps, generators and lighting to the mains supply and using in environments where flexibility and resistance to mechanical abrasion is necessary. The cable features tinned annealed flexible copper conductors and ethylene propylene rubber insulation. The chlorosulphonated polyethylene outer sheath is available in black.



Standards: BS7919 (Harmonised code H07BN4-F)

Flame Retardant: BS EN 60332-1-2 (BS EN 50265-2-1)

Conductor: Tinned Annealed Flexible Copper Conductors

Insulation: Ethylene Propylene Rubber (EPR)

Sheath: Chlorosulphonated Polyethylene (CSP)

Sheath Colour: Black

Voltage Rating: 450/750 volts

Temperature limits: -25°C to +90°C

Minimum Bending Radius:
Fixed 5 x overall diameter
Flexing 7 x overall diameter

Should not be installed at temperatures below -25°C

For more information please consult a member of the Cleveland Cable Sales Team.

CORE IDENTIFICATION

2 core - Blue Blue Brown Brown

3 core - Blue Blue Brown Brown Green Yellow Green/Yellow

4 core - Grey Grey Black Black Brown Brown Green Yellow Green/Yellow

5 core - Grey Grey Black Black Brown Brown Blue Blue Green Yellow Green/Yellow

6 core and above - Black Black with White White numbers plus Green Yellow Green/Yellow





DIMENSIONS

Size sq.mm Number of cores RT of insulation mm Nom diameter over laid up cores mm Nom overall diameter mm Weight kg/km Size sq.mm Number of cores RT of insulation mm Nom diameter over laid up cores mm Nom overall diameter mm Weight kg/km
4 1 1.0 4.7 7.8 105 6 4 1.0 13.8 18.5 565
6 1 1.0 5.7 9.0 130 10 4 1.2 17.2 24.1 1020
10 1 1.2 7.1 10.8 200 16 4 1.2 19.8 27.1 1380
16 1 1.2 8.2 12.1 275 25 4 1.4 24.2 32.5 2140
25 1 1.4 10.0 14.1 400 35 4 1.4 27.6 36.5 2610
35 1 1.4 11.4 15.9 520 50 4 1.6 32.9 42.6 3650
50 1 1.6 13.6 18.5 730 70 4 1.6 38.0 48.6 4880
70 1 1.6 15.7 21.0 980 95 4 1.8 44.0 56.0 6390
95 1 1.8 18.2 23.9 1270 120 4 1.8 47.7 59.9 7750
120 1 1.8 19.7 25.8 1570 150 4 2.0 53.6 66.8 9780
150 1 2.0 22.1 28.6 1960 185 4 2.2 59.3 73.5 11900
185 1 2.2 24.5 31.5 2380 240 4 2.4 67.6 83.2 15330
240 1 2.4 27.9 35.1 3100 300 4 2.6 75.8 92.8 19030
300 1 2.6 31.2 38.7 3790 4 5 1.0 12.7 17.2 515
400 1 28 35.7 43.5 4880 6 5 1.0 15.4 20.5 690
500 1 3.0 39.6 47.8 6070 10 5 1.2 19.2 26.5 1240
630 1 3.0 43.1 51.5 7460 16 5 1.4 22.2 30.1 1695
4 2 1.0 9.5 13.2 275 25 5 1.4 27.1 36.1 2470
6 2 1.0 11.5 15.6 370 4 6 1.0 14.2 19.6 643
10 2 1.2 14.3 20.6 690 6 6 1.0 17.2 23.4 917
16 2 1.2 16.5 23.3 910 10 6 1.2 21.4 28.8 1420
25 2 1.4 20.1 27.4 1290 16 6 1.2 24.7 32.7 1973
4 3 1.0 10.2 14.1 335 25 6 1.4 30.2 39.2 2921
6 3 1.0 12.3 16.6 450 35 6 1.4 34.4 44.0 3822
10 3 1.2 15.4 22.1 835 50 6 1.6 41.0 51.8 5337
16 3 1.2 17.7 24.8 1120 4 7 1.0 15.8 21.6 773
25 3 1.4 21.6 29.3 1600 6 7 1.0 19.1 25.7 1089
35 3 1.4 24.6 32.9 2080 10 7 1.2 23.8 31.6 1706
50 3 1.6 29.4 38.5 2890 16 7 1.2 27.5 35.7 2330
70 3 1.6 33.6 43.6 3850 25 7 1.4 33.6 43.2 3560
95 3 1.8 39.3 50.0 6390 35 7 1.4 38.3 48.5 4576
120 3 1.8 42.5 53.9 7750 50 7 1.6 45.8 57.4 6436
150 3 2.0 47.7 59.9 9780 4 8 1.0 17.3 23.5 908
185 3 2.2 52.9 65.9 11900 4 10 1.0 18.9 25.3 1073
240 3 2.4 60.3 74.7 15330 4 12 1.0 19.6 26.2 1183
300 3 2.6 67.6 83.2 19030 4 16 1.0 22.1 29.3 1505
4 4 1.0 11.4 15.5 420 4 18 1.0 23.6 31.0 1687
            4 20 1.0 25.2 33.0 1902
