Conductor: | Flexible (fine Wire Class 5) | Insulation: | Special Cross-linked EI 8 Rubber |
---|---|---|---|
Sheath: | Special Cross-linked EM8 | Voltage: | 450 / 750 V |
Temperature Rating: | -40 .. 50°C | Colour: | Black |

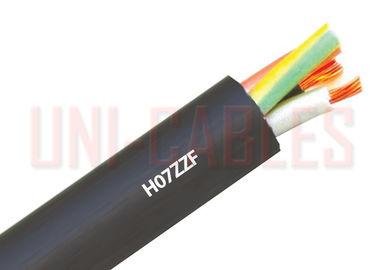

H07ZZ-F Flexible Cable Rubber Low Smoke Halogen Free Rubber Cable
APPLICATION
H07ZZ-F halogen free flexible multi-core power cable is designed for applications with a voltage rating of 450/750V that are subjected to medium mechanical stresses such as supplying mobile power units, UPS installations, stage lighting and audio visual equipment. The H07ZZ-F is suitable for installation both indoors and outdoors. It has a Low Smoke Zero Halogen (LSZH) insulation and oversheath, making it suitable for installation in buildings or industrial plants with a high density of people, and where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
The H07ZZ-F cable is used across a broad range of applications across almost all industry sectors including Airports, Automation & Process Control, Communications & Telecommunication, Marine & Offshore, Oil, Gas & Petrochemicals, Renewable Energy, and Water Treatment.
CHARACTERISTICS
Voltage Rating (Uo/U) 450/750V
Temperature Rating
Fixed: -20°C to +90°C
Flexed: -5°C to +50°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter
Core Identification
Single core: Black
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Blue Brown Black Grey
6 core and above: Black with White numbers Green/Yellow
Sheath Colour Black
DIMENSIONS
Number of Cores | Nominal Cross-Sectional Area | Nominal Overall Diameter mm | Nominal Weight kg/km |
1 | 1.5mm2 | 6.4 | 63 |
1 | 2.5mm2 | 7.1 | 76 |
1 | 4.0mm2 | 8.1 | 107 |
1 | 6.0mm2 | 8.85 | 140 |
1 | 10mm2 | 10.7 | 213 |
1 | 16mm2 | 12.1 | 291 |
1 | 25mm2 | 14.25 | 415 |
1 | 35mm2 | 16.1 | 539 |
1 | 50mm2 | 18.55 | 740 |
1 | 70mm2 | 20.95 | 989 |
1 | 95mm2 | 23.4 | 1290 |
1 | 120mm2 | 25.7 | 1592 |
1 | 150mm2 | 28.3 | 1957 |
1 | 185mm2 | 31 | 2350 |
1 | 240mm2 | 34.45 | 3099 |
1 | 300mm2 | 37.7 | 3687 |
1 | 400mm2 | 42.1 | 4850 |
1 | 500mm2 | 46.65 | 5998 |
