Standard: | IEC60502-1 | Application: | Power Distribution |
---|---|---|---|
Insulation: | XLPE | Sheathing Material: | PVC |
Filler: | Non-hygroscopic Material | Voltage: | 600/1000V |

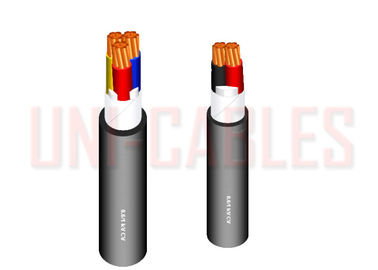

Type CV JIS Standard CU/XLPE/PVC LV Cable for General Purpose Power Distribution
APPLICATION
CV cables are used for general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.
Reference Standard:
IEC 60502-1
Cable Construction:
Conductor: Circle or circle compacted stranded annealed copper wires
Insulation: Cross-linked polyethylene(XLPE)
Color : 2-4 cores-Black, White, Red and Green ,
More than 4 cores: Black core with marking numbers
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyvinyl chloride (PVC), Black color.(A special flame retardant sheath can be supplied).
Technical Characteristics:
Maximum conductor temperature 90oC Circuit voltage not exceeding 600 volts Test voltage 3500 volts
Cable Parameter
NOMINAL SECTIONAL AREA |
NO. OF WIRE |
DIAMETER OF CONDUCTOR (APPROX.) |
THICKNESS OF INSULATION |
THICKNESS OF SHEATH | OVERALL DIAMETER (APPROX.) | MAXIMUM DC. RESISTANCE OF CDR. AT 20°C |
CABLE WEIGHT (APPROX.) |
MM² | MM | MM | MM | MM | OHM / KM | KG / KM | |
1 core | |||||||
1.5 | 7/0.53 | 1.59 | 0.7 | 1.4 | 6.3 | 12.1 | 50 |
2.5 | 7/0.67 | 2.01 | 0.7 | 1.4 | 6.7 | 7.41 | 70 |
4 | 7/0.85 | 2.55 | 0.7 | 1.4 | 7.2 | 4.61 | 90 |
6 | 7/1.04 | 3.12 | 0.7 | 1.4 | 7.8 | 3.08 | 110 |
10 | 7/1.35 | 4.05 | 0.7 | 1.4 | 9.4 | 1.83 | 170 |
16 | compacted | 4.7 | 0.7 | 1.4 | 10 | 1.15 | 210 |
25 | compacted | 5.9 | 0.9 | 1.4 | 12 | 0.727 | 310 |
35 | compacted | 6.9 | 0.9 | 1.4 | 13 | 0.524 | 400 |
50 | compacted | 8.1 | 1 | 1.4 | 14.5 | 0.387 | 520 |
70 | compacted | 9.8 | 1.1 | 1.4 | 16 | 0.268 | 720 |
95 | compacted | 11.4 | 1.1 | 1.5 | 18.5 | 0.193 | 970 |
120 | compacted | 12.9 | 1.2 | 1.5 | 20 | 0.153 | 1,210 |
150 | compacted | 14.4 | 1.4 | 1.6 | 22 | 0.124 | 1,490 |
185 | compacted | 15.9 | 1.6 | 1.6 | 24 | 0.0991 | 1,840 |
240 | compacted | 18.3 | 1.7 | 1.7 | 27 | 0.0754 | 2,400 |
300 | compacted | 20.5 | 1.8 | 1.8 | 30 | 0.0601 | 2,980 |
400 | compacted | 23.2 | 2 | 1.9 | 34 | 0.047 | 3,800 |
500 | compacted | 26.4 | 2.2 | 2 | 37 | 0.0366 | 4,850 |
630 | compacted | 30.2 | 2.4 | 2.2 | 42 | 0.0283 | 6,240 |
4 cores | |||||||
1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 12.5 | 12.1 | 170 |
2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 13.5 | 7.41 | 220 |
4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 14.5 | 4.61 | 290 |
6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 16 | 3.08 | 380 |
10 | 7/1.35 | 4.05 | 0.7 | 1.8 | 20 | 1.83 | 570 |
16 | compacted | 4.7 | 0.7 | 1.8 | 22 | 1.15 | 790 |
25 | compacted | 5.9 | 0.9 | 1.8 | 26 | 0.727 | 1,180 |
35 | compacted | 6.9 | 0.9 | 1.8 | 28 | 0.524 | 1,550 |
50 | compacted | 8.1 | 1 | 1.9 | 32 | 0.387 | 2,060 |
70 | compacted | 9.8 | 1.1 | 2 | 36 | 0.268 | 2,930 |
95 | compacted | 11.4 | 1.1 | 2.1 | 42 | 0.193 | 3,970 |
120 | compacted | 12.9 | 1.2 | 2.3 | 46 | 0.153 | 4,980 |
150 | compacted | 14.4 | 1.4 | 2.4 | 51 | 0.124 | 6,130 |
185 | compacted | 15.9 | 1.6 | 2.6 | 56 | 0.0991 | 7,660 |
240 | compacted | 18.3 | 1.7 | 2.8 | 63 | 0.0754 | 9,960 |
300 | compacted | 20.5 | 1.8 | 3 | 70 | 0.0601 | 12,380 |
