Conductor: | Class 5 Flexible Tinned Copper Conductor | Insulation: | XLPE |
---|---|---|---|
Sheath: | Crossed Linked Compound M21 | Voltage Rating (Uo/U): | AC: 600/1000V, DC: 900/1800V |
Temperature Rating: | Fixed: -40°C To +90°C | Minimum Bending Radius: | Flexed: 5 X Overall Diameter |
Maximum Voltage (Umax): | 1.8kV DC (conductor/conductor, Non Earthed System, Circuit Not Under Load) | Maximum Conductor Temperature: | +120°C (for 20000h) |

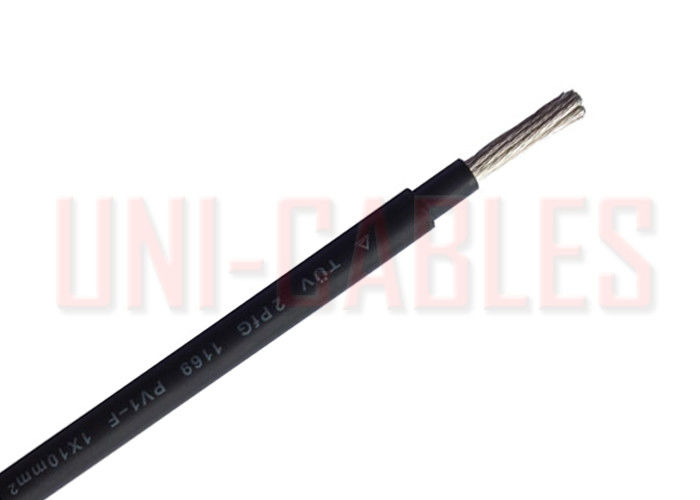

PV1-F Solar Power Cables Annealed Copper Conductor XLPE Insulation XLPE Sheath
INTRODUCTION
Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components in the photovoltaic system. Matching step with the environment friendly shift the Solar Cable has been made which performs highest standards of application in its diverse usage.
Properties
Features
Chemical Features:
Thermal Features:
Electrical Features:
DIMENSIONS
Number of cores x conductor cross-section | Construction of individual conductor | External diameter | Conductor diameter | Insulation thickness | Conductor resistance at 20 °C | Current load | Cu weight | Cable weight |
N x mm² | n x mm | mm | mm | mm | mm | Ω/km | kg/km | kg/km |
1 x 1,5 | 30 x 0,25 | 5,1 | 1,6 | 0,7 | 13,3 | 30 | 14,4 | 38,4 |
1 x 2,5 | 50 x 0,25 | 5,4 | 2,0 | 0,7 | 7,98 | 41 | 24 | 45,4 |
1 x 4 | 56 x 0,30 | 6,2 | 2,5 | 0,7 | 4,95 | 55 | 38,4 | 60,1 |
1 x 6 | 84 x 0,30 | 6,9 | 3,1 | 0,7 | 3,30 | 70 | 57,6 | 90,7 |
1 x 10 | 80 x 0,40 | 8,2 | 4,1 | 0,7 | 1,91 | 98 | 96 | 131,1 |
1 x 16 | 128 x 0,40 | 9,3 | 5,2 | 0,7 | 1,21 | 132 | 153,6 | 187,1 |
1 x 25 | 200 x 0,40 | 10,8 | 6,5 | 0,9 | 0,78 | 176 | 240 | 276,1 |
1 x 35 | 280 x 0,40 | 12,1 | 7,5 | 0,9 | 0,554 | 218 | 336 | 368,8 |
1 x 50 | 400 x 0,40 | 14,8 | 9,0 | 1,0 | 0,386 | 276 | 480 | 557 |
1 x 70 | 356 x 0,50 | 16,9 | 11,0 | 1,1 | 0,272 | 347 | 672 | 767 |
1 x 95 | 485 x 0,50 | 18,7 | 12,7 | 1,1 | 0,206 | 416 | 912 | 989,6 |
1 x 120 | 614 x 0,50 | 20,7 | 13,7 | 1,2 | 0,161 | 488 | 1152 | 1232,8 |
