TUV UL 2 PfG 1169 Solar Power Cables PV1 - F AC DC 4mm Double Core 6.5KV

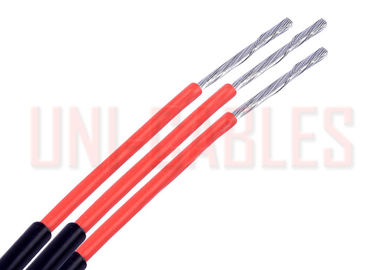

: Large Image : TUV UL 2 PfG 1169 Solar Power Cables PV1 - F AC DC 4mm Double Core 6.5KV

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	TUV
Model Number:	2PfG 1169

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Meters
Price:	US$ 1.5-1.8 per Meter
Packaging Details:	100 Meters oer
Delivery Time:	15-20 working days
Supply Ability:	100km per Month

Contact Now

Detailed Product Description

Conductor:	Class 5 Flexible Tinned Copper Conductor	Insulation:	XLPE
Sheath:	Crossed Linked Compound M21	Voltage Rating (Uo/U):	AC: 600/1000V, DC: 900/1800V
Temperature Rating:	Fixed: -40°C To +90°C	Minimum Bending Radius:	Flexed: 5 X Overall Diameter
Maximum Voltage (Umax):	1.8kV DC (conductor/conductor, Non Earthed System, Circuit Not Under Load)	Maximum Conductor Temperature:	+120°C (for 20000h)

UL & TUV 2 PfG 1169 PV1-F Wire 1 & 2 core AC & DC 4mm double core solar cable

Cable design

Conductor: fine wire strands of tinned copper wires,according IEC 60228,Class 5

Insulation: irradiation cross-linkable LSZH flame retardant polyolefin compound
Outer jacket: irradiation cross-linkable LSZH flame retardant polyolefin compound resistance against water , UV resistant

Temperature range
Max,temperature at conductor -40°C up to +120°C
Temperature range -40°C up to +90°C

Electrical characteristics
Nominal voltage: AC 600/1000V,DC 900/1800V

AC-test-voltage: 6.5KV

Application

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

Properties

Used in extreme weather conditions.
Equipped with UV Resistance.
Halogen-free: low smoke emission and low toxicity during fire.
Flame & Fire retardant.
Flexibility & stripability: for fast and easy installation.
Easily Recyclable: in accordance with new government norms.
Easy installtion: with color identification.
Suitable to common connector types.
One common factor for most of the photovoltaic power system is outdoor use, characterized by high temperatures and high UV radiation.

DIMENSIONS

Number of cores x conductor cross-section	Construction of individual conductor	External diameter	Conductor diameter	Insulation thickness	Conductor resistance at 20 °C	Current load	Cu weight	Cable weight
N x mm²	n x mm	mm	mm	mm	mm	Ω/km	kg/km	kg/km
1 x 1,5	30 x 0,25	5,1	1,6	0,7	13,3	30	14,4	38,4
1 x 2,5	50 x 0,25	5,4	2,0	0,7	7,98	41	24	45,4
1 x 4	56 x 0,30	6,2	2,5	0,7	4,95	55	38,4	60,1
1 x 6	84 x 0,30	6,9	3,1	0,7	3,30	70	57,6	90,7
1 x 10	80 x 0,40	8,2	4,1	0,7	1,91	98	96	131,1
1 x 16	128 x 0,40	9,3	5,2	0,7	1,21	132	153,6	187,1
1 x 25	200 x 0,40	10,8	6,5	0,9	0,78	176	240	276,1
1 x 35	280 x 0,40	12,1	7,5	0,9	0,554	218	336	368,8
1 x 50	400 x 0,40	14,8	9,0	1,0	0,386	276	480	557
1 x 70	356 x 0,50	16,9	11,0	1,1	0,272	347	672	767
1 x 95	485 x 0,50	18,7	12,7	1,1	0,206	416	912	989,6
1 x 120	614 x 0,50	20,7	13,7	1,2	0,161	488	1152	1232,8
