EPR H07RN-F Class 5 Rubber Flexible Cable Harmonized Heavy Duty Trailing

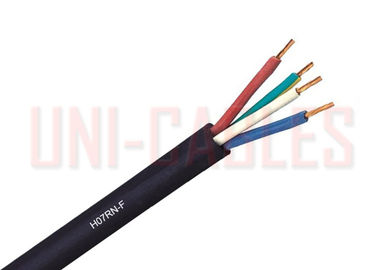

: Large Image : EPR H07RN-F Class 5 Rubber Flexible Cable Harmonized Heavy Duty Trailing

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	H07RN-F

Payment & Shipping Terms:

Minimum Order Quantity:	100 Meters
Price:	Negotiable
Packaging Details:	100 Meters per Coil
Delivery Time:	15-20 Working days
Supply Ability:	6000 Meters per Week

Contact Now

Detailed Product Description

Conductor:	Plain Annealed Flexible Copper, Class 5	Insulation:	EPR
Sheath:	PCP (Polychloroprene)	Voltage:	450/750V
Temperature Rating:	-30°C To +60°C	Colour:	Black

H07RN-F Rubber Flexible Cable Harmonized Flexible Heavy Duty Trailing Cable

APPLICATION

These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses.

Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams.

Also for use in drainage and water treatment, cold environments and severe industrial environments.

Resistant sheath means it can be used in refrigerating installations

Conductors: Plain annealed flexible copper

Insulation: EPR (Ethylene propylene rubber)

Core identification:

single core: black,

2 core: Blue & brown,

3 core: Blue, brown & green/yellow,

4 core: Black, brown, grey & green/yellow,

5 core: Black, blue, brown, grey & green/yellow,

7 cores and above are numbered

Sheath/Jacket: PCP (Polychloroprene) more commonly refered to as OFR (Oil resistant & flame retardent)

Colour: Black

Voltage: 450/750v

Operating temperature: Maximum 60°C, minimum bending -30°C

Standards:

BS6500: electrical cables for use with appliances and equipment intended for domestic, office and similar environments
BS7919: Electric cables. Flexible cables rated up to 450/750V for use with appliances and equipment intended for industrial and similar environments

DIMENSIONS

Size sq.mm	Number of cores	RT of insulation mm	Nom diameter over laid up cores mm	Nom overall diameter mm	Weight kg/km	Size sq.mm	Number of cores	RT of insulation mm	Nom diameter over laid up cores mm	Nom overall diameter mm	Weight kg/km
1.5	1	-‐	-‐	-‐	-‐	16	4	1.2	19.8	27.1	1138
4	1	1.0	4.7	7.8	115	25	4	1.4	24.2	32.5	1684
6	1	1.0	5.7	9.0	142	35	4	1.4	27.6	36.5	2191
10	1	1.2	7.1	10.8	219	50	4	1.6	32.9	42.6	3033
16	1	1.2	8.2	12.1	265	70	4	1.6	38.0	48.6	4095
25	1	1.4	10.0	14.1	381	95	4	1.8	44.0	46.0	5315
35	1	1.4	11.4	158.9	496	120	4	1.8	47.7	59.9	6519
50	1	1.6	13.6	18.5	684	150	4	2.0	53.6	66.8	8108
70	1	1.6	15.7	21.0	921	185	4	2.2	59.3	73.5	9772
95	1	1.8	18.2	23.9	1184	240	4	2.4	67.6	83.2	12557
120	1	1.8	19.7	25.8	1468	300	4	2.6	75.8	92.8	19600
150	1	2.0	22.1	28.6	1814	1.5	5	0.8	8.8	12.5	214
185	1	2.2	24.5	31.5	2170	2.5	5	0.9	10.4	14.5	310
240	1	2.4	27.9	35.1	2771	4	5	1.0	12.7	17.2	424
300	1	2.6	31.2	38.7	3363	6	5	1.0	15.4	20.5	581
400	1	2.8	35.7	43.5	4505	10	5	1.2	19.2	26.5	1002
500	1	3.0	39.6	47.8	5551	16	5	1.2	22.2	30.1	1408
630	1	3.0	43.1	51.5	7650	25	5	1.4	27.1	36.1	2091
1.0	2	0.8	5.9	8.6	91	35	5	1.4	30.9	40.5	2629
1.5	2	0.8	6.5	9.6	112	50	5	1.6	36.9	47.3	3665
2.5	2	0.9	7.7	11.2	163	70	5	-‐	-‐	-‐	4933
4	2	1.0	9.5	13.2	223	95	5	-‐	-‐	-‐	6264
6	2	1.0	11.5	15.6	292	1.5	7	-‐	-‐	-‐	216
10	2	1.2	14.3	20.6	527	2.5	7	0.9	12.9	18.9	305
16	2	1.2	16.5	23.3	703	4	7	1.0	15.8	21.6	618
25	2	1.4	20.1	27.4	1400	6	7	1.0	19.1	25.7	1090
1.0	3	0.8	6.4	9.3	109	10	7	1.2	23.8	31.6	1710
1.5	3	0.8	7.0	10.3	140	16	7	1.2	27.5	35.7	2330
2.5	3	0.9	8.3	12.0	199	25	7	1.4	33.6	43.2	3560
4	3	1.0	10.2	14.1	273	1.5	8	0.8	11.9	17.7	385
6	3	1.0	12.3	16.6	361	2.5	8	0.9	14.1	20.3	560
10	3	1.2	15.4	22.1	656	4.0	8	1.0	17.3	23.5	900
16	3	1.2	17.7	24.8	903	25	9	-‐	-‐	-‐	-‐
25	3	1.4	21.6	29.3	1318	1.5	12	0.8	13.5	19.5	485
35	3	1.4	24.6	32.9	1745	2.5	12	0.9	16.0	22.5	689
50	3	1.6	29.4	38.5	2404	4.0	12	1.0	19.6	26.2	1180
70	3	1.6	33.9	43.6	3208	1.5	18	0.8	16.3	23.0	700
95	3	1.8	39.3	50.0	4166	2.5	18	0.9	19.3	26.6	1020
120	3	1.8	42.5	53.9	6700	4.0	18	1.0	23.6	31.0	1690
150	3	2.0	47.7	59.9	8000	1.5	19	-‐	-‐	-‐	697
185	3	2.2	52.9	65.9	9700	2.5	19	-‐	-‐	-‐	1008
240	3	2.4	60.3	74.7	12400	1.5	21	0.8	18.4	25.5	885
300	3	2.6	67.6	83.2	15300	2.5	21	0.9	21.8	29.7	1290
1.0	4	0.8	7.2	10.3	139	1.5	27	0.8	20.0	27.5	1090
1.5	4	0.8	7.8	11.4	173	2.5	27	0.9	23.7	32.1	1590
2.5	4	0.9	9.3	13.2	246	1.5	37	0.8	22.7	31.0	1300
4	4	1.0	11.4	15.5	339	2.5	37	0.9	27.2	38.7	2320
6	4	1.0	13.8	18.5	452	1.5	42	0.8	26.0	34.8	1660
10	4	1.2	17.2	24.1	814	2.5	42	0.9	30.8	40.6	2430
