BS EN60702 Fire Proof Cable 2 Cores Mineral Insulated Heavy Duty 750V

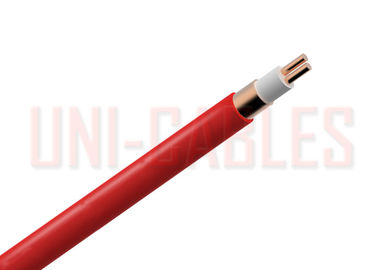

: Large Image : BS EN60702 Fire Proof Cable 2 Cores Mineral Insulated Heavy Duty 750V

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	MIC Heavy Duty

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Meters
Price:	Depends on Quantity
Packaging Details:	5 Meters or 11 Meters
Delivery Time:	15-20 working days
Supply Ability:	10000 Meters per Week

Contact Now

Detailed Product Description

Voltage Rating (Uo/U):	750V	Temperature Rating:	-10°C To 250°C
Sheath Colour:	Red White Orange	Conductor:	Solid Plain Copper Conductor
Insulation:	Magnesium Oxide	Sheath:	Copper Tube, LSZH (Low Smoke Zero Halogen)

BS EN60702 Fire Resistance Cable 2 Cores Mineral Insulated Heavy Duty 750V

APPLICATION

A 750V heavy duty mineral insulated cable, designed to give the ultimate Fire Performance.

Suitable for Oil, Gas and Petroleum industries, airports, emergency lighting systems and fire alarm systems for power and control circuits providing circuit integrity to 950°C.

Construction	Solid copper conductor. Compressed magnesium oxide powder insulation. Solid copper sheath.
Operating Temperature	-10degC to +250degC
Minimum Bending Radius	6 x overall diameter
Core Identification	Coloured sleeving available
Lengths	100/500m. Special lengths available on request.
Sheath Colour	N/A
Manufacturing Standard	BS EN 60702-1
Code of Practice/ Guide to Use	BS 5839-1 Clause 26.2e Enhanced BS 5266 BS 8519 Category 1 & 2 Control (for Category 3 & power applications see special notes)
Fire Tests	BS 8434-2 BS EN 50200 PH30, PH60, PH120 BS 6387 C W & Z BS 8491
Emissions and Flame Propagation	In its bare form there are no emissions

DIMENSIONS

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	1	6.4	126
2	1.5	7	154
2	2.5	7.9	206
2	4	9.2	322
3	1	7.1	159
3	1.5	7.7	194
3	2.5	8.8	272
4	1	7.6	187
4	1.5	8.3	231
4	2.5	9.6	336
7	1.5	9.9	351
7	2.5	11.2	475

CONDUCTOR

NOMINAL CROSS SECTIONAL AREA	MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
mm²	ohms/km
1	18.1
1.5	12.1
2.5	7.41
4	4.61

ELECTRICAL CHARACTERISTICS

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	SINGLE PHASE AC OR DC Amps	THREE PHASE AC Amps
2	1	18.5	-
2	1.5	23	-
2	2.5	31	-
2	4	40	-
3	1	-	15
3	1.5	-	19
3	2.5	-	26
4	1	-	15
4	1.5	-	19
4	2.5	-	26
7	1.5	13	-
7	2.5	17.5	-

Voltage Drop

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	SINGLE PHASE AC OR DC mV/A/M	THREE PHASE AC mV/A/M
2	1	42	-
2	1.5	28	-
2	2.5	17	-
2	4	10	-
3	1	-	36
3	1.5	-	24
3	2.5	-	14
4	1	-	36
4	1.5	-	24
4	2.5	-	14
7	1.5	28	-
7	2.5	17	-
