1X70mm2 MICC Heavy Duty Mineral Insulated Cable 1000V Fire Resistance Cable

China 1X70mm2 MICC Heavy Duty Mineral Insulated Cable 1000V Fire Resistance Cable supplier

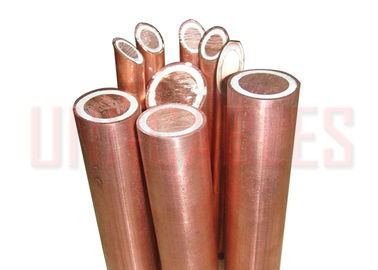

Large Image :  1X70mm2 MICC Heavy Duty Mineral Insulated Cable 1000V Fire Resistance Cable

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: BTTZ

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Depends on Quantity
Packaging Details: 5 Meters or 11 Meters
Delivery Time: 15-20 working days
Supply Ability: 10000 Meters per Week
Contact Now
Detailed Product Description
Voltage Rating (Uo/U): 1000V Temperature Rating: -10°C To 250°C
Conductor: Solid Plain Copper Conductor Insulation: Magnesium Oxide
Sheath: Copper Tube Jacket: Non Jacketed

MICC Light Duty Mineral Insulated Cable 500V Non Jacketed Fire Survival Cable





APPLICATION

Mineral Insulated Cables offer a lifetime, ageless and fireproof electric cable solution that are used to protect essential ‘lifecritical’ circuits in:

• High Rise Buildings

• Tunnels

• Airports

• Towers

• Mass Rapid Transit Systems



MICC Mineral Insulated Cable – Material Construction

• An outer sheath consisting of a continuous seamless copper tube with a melting point of 1083 deg C

• A magnesium oxide insulant with a melting point of 2800 deg C

• 99.9% electrolytic copper conductors with a melting point of 1083 deg C





ADVANTAGE

• Pliable

• Mechanically superior

• Fireproof

• Waterproof

• Explosion Proof

• Radiation Resistant

• Lighter in weight

• Can operate in low temperatures



Properties

1. Property of corrosion proof, organic insulated fireproof requires plastic tube or tube or iron tube sometimes, the plastic tube is liable to deteriorate and iron tube is apt to rust or erode, but the fireproof cable has copper sheath and the tube is need-less, besides, copper sheath has favorable corrosion resistance.



2. Free of electromagnetic interference when wiring in the same vertical shaft with information wire and control wire because of shielding of copper sheath the fireproof cable would not interfere the single and control wires or cables ;



3. Tinguishing apparatus normally in flame, it reduces fire damage, extinguishing apparatus normally in flame, it reduces fire damage. Besides, it is reliable for personnel safety, as its copper sheath is a kind of good conductor, is the best earthed PE wire and covers the whole cable, the life of up to 100 years ;

4. Long service life, high-temperature resistance and degradation resistance of inorganic insulated material its service life is many times of that of organic insulated cables, under normal working conditions, its service Life can be as long as that of buildings;



We supply the full range of LSF (Low Smoke & Fume) outer coverings.

Used for identification purposes where cables are run on the surface of walls or cable trayplates. They are usually Red in colour for fire protection, or the standard Orange. We can also supply a range of other colours on request.



Construction  Solid copper conductor. Compressed magnesium oxide powder insulation. Solid copper sheath.
Operating Temperature  -10degC to +250degC
Core Identification  Coloured sleeving available
Lengths  100/500m. Special lengths available on request.
Sheath Colour  N/A
Manufacturing Standard  BS EN 60702-1
Code of Practice/
Guide to Use
BS 5839-1 Clause 26.2e Enhanced
BS 5266
BS 8519 Category 1 & 2 Control
(for Category 3 & power applications see special notes)
Fire Tests  BS 8434-2
BS EN 50200 PH30, PH60, PH120
BS 6387 C W & Z
BS 8491
Emissions and
Flame Propagation
In its bare form there are no emissions



DIMENSIONS

Number and Conductor Size Cable Diameter Current Ratings Nominal
Lenght
Weight
Bare Cable LSF
Served Cable
Bare Cable LSF
Served Cable
Bare Cable LSF
Served
Cable
mm² mm mm A A m Kg/Km Kg/Km
2x1.0 5.1 6.4 17.5 19.5 800 104 125
2x1.5 5.7 7 22.5 25 800 130 153
2x2.5 6.6 7.9 30 33 600 179 205
2x4.0 7.7 9.2 40 44 450 248 287
3x1.0 5.8 7.1 15 16.5 800 135 159
3x1.5 6.4 7.7 19 21 650 168 193
3x2.5 7.3 8.8 25 28 500 224 261
4x1.0 6.3 7.6 14.5 16 700 161 187
4x1.5 7 8.3 19 21 550 202 230
4x2.5 8.1 9.6 25 28 400 278 319
7x1.0 7.6 9.1 10 11 650 233 271
7x1.5 8.4 9.9 12.5 14 530 291 333
7x2.5 9.7 11.2 17 19 400 407 455


1X70mm2 MICC Heavy Duty Mineral Insulated Cable 1000V Fire Resistance Cable1X70mm2 MICC Heavy Duty Mineral Insulated Cable 1000V Fire Resistance Cable
