MICC Heavy Duty Fire Resistance Cable Mineral Insulated Copper Tube Insulated

China MICC Heavy Duty Fire Resistance Cable Mineral Insulated Copper Tube Insulated supplier

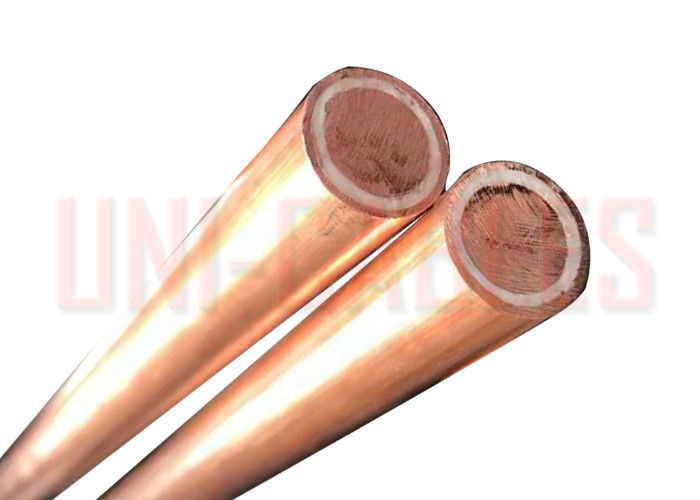

Large Image :  MICC Heavy Duty Fire Resistance Cable Mineral Insulated Copper Tube Insulated

Product Details:

Place of Origin: CHINA
Brand Name: UNI-CABLES
Certification: ISO9001
Model Number: MICC 750V

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: Depends on Quantity
Packaging Details: 5 Meters or 11 Meters
Delivery Time: 15-20 working days
Supply Ability: 10000 Meters per Week
Contact Now
Detailed Product Description
Voltage Rating (Uo/U): 750V Temperature Rating: -10°C To 250°C
Conductor: Solid Plain Copper Conductor Insulation: Magnesium Oxide
Sheath: Copper Tube Jacket: Non Jacketed

MICC Heavy Duty Mineral Insulated Copper Tube Insulated Fire Resistance Cable





APPLICATION

Mineral Insulated Cables offer a lifetime, ageless and fireproof electric cable solution that are used to protect essential ‘lifecritical’ circuits in:

• High Rise Buildings

• Tunnels

• Airports

• Towers

• Mass Rapid Transit Systems



MICC Mineral Insulated Cable – Material Construction

• An outer sheath consisting of a continuous seamless copper tube with a melting point of 1083 deg C

• A magnesium oxide insulant with a melting point of 2800 deg C

• 99.9% electrolytic copper conductors with a melting point of 1083 deg C





ADVANTAGE

• Pliable

• Mechanically superior

• Fireproof

• Waterproof

• Explosion Proof

• Radiation Resistant

• Lighter in weight

• Can operate in low temperatures



We supply the full range of LSF (Low Smoke & Fume) outer coverings.

Used for identification purposes where cables are run on the surface of walls or cable trayplates. They are usually Red in colour for fire protection, or the standard Orange. We can also supply a range of other colours on request.



DIMENSIONS



Number and Conductor Size Cable Diameter Current Ratings Nominal
Lenght
Weight
Bare Cable LSF
Served Cable
Bare Cable LSF
Served Cable
Bare Cable LSF
Served
Cable
mm² mm mm A A m Kg/Km Kg/Km
1x1.5 4.9 6.2 30 33 1000 97 117
1x2.5 5.3 6.6 39 43 1000 116 137
1x4.0 5.9 7.2 51 56 1000 146 170
1x6.0 6.4 7.7 63 69 900 180 206
1x10 7.3 8.8 81 90 700 241 278
1x16 8.3 9.8 107 119 560 329 371
1x25 9.6 11.1 139 154 425 455 502
1x35 10.7 12.2 168 187 340 584 637
1x50 12.1 13.6 207 230 250 773 831
1x70 13.7 15.2 251 279 220 1022 1088
1x95 15.4 17.4 300 333 220 1315 1403
1x120 16.8 18.8 344 382 190 1604 1701
1x150 18.4 20.4 388 431 155 1950 2054
1x185 20.4 22.9 434 482 125 2360 2496
1x240 23.3 25.8 483 537 99 2993 3147
1x300 26 28.6 795 883 80 3680 3852
1x400 30 32.8 948 1053 60 4805 5007
2x1.5 7.9 9.4 23.5 26 560 230 270
2x2.5 8.7 10.2 32 36 480 284 327
2x4.0 9.8 11.3 42 47 360 365 413
2x6.0 10.9 12.4 54 60 300 459 512
2x10 12.7 14.2 74 82 230 634 695
2x16 14.7 16.2 98 109 170 871 941
2x25 17.1 19.1 128 142 130 1201 1299
3x1.5 8.3 9.8 20 22 550 260 302
3x2.5 9.3 10.8 27 30 440 332 378
3x4.0 10.4 11.9 36 40 350 426 477
3x6.0 11.5 13 46 51 270 537 593
3x10 13.6 15.1 62 69 200 768 833
3x16 15.6 17.6 83 92 150 1050 1140
3x25 18.2 20.2 108 120 100 1460 1564
4x1.5 9.1 10.6 20.5 23 450 312 358
4x2.5 10.1 11.6 27 30 360 395 444
4x4.0 11.4 12.9 36 40 300 519 574
4x6.0 12.7 14.2 46 51 220 658 719
4x10 14.8 16.3 61 68 170 927 997
4x16 17.3 19.3 80 89 148 1353 1455
4x25 20.1 22.6 104 116 124 1822 1956
7x1.5 10.8 12.3 14 15.5 260 444 496
7x2.5 12.1 13.6 19 21 240 562 620
10x1.5 13.5 15 12.5 13.5 180 638 703
10x2.5 15.2 17.2 17 19 150 836 924
12x1.5 14.1 15.6 11.5 13 160 706 774
12x2.5 15.6 17.6 15.5 17 150 907 997
19x1.5 16.6 18.6 10 11 120 982 1077

MICC Heavy Duty Fire Resistance Cable Mineral Insulated Copper Tube InsulatedMICC Heavy Duty Fire Resistance Cable Mineral Insulated Copper Tube Insulated
