ASTM - B232 Aluminum Conductor Steel Reinforced , Light Weight ACSR Overhead Conductor

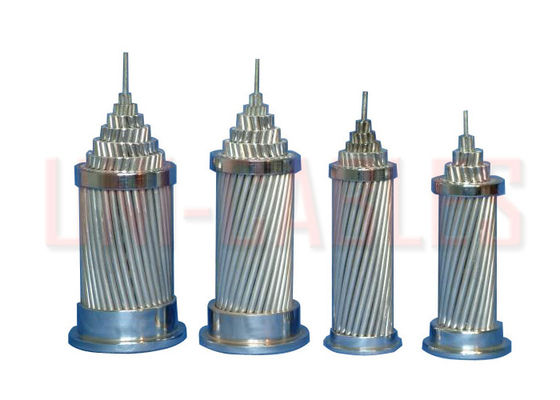

ASTM-B232 ACSR Conductor Aluminum Conductor Steel Reinforced Overhead Conductor

Introductions:

ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium. ACSR conductor is available in a range of steel strengths varying from 6% up to 40%. The higher strength ACSR conductors are used for river crossings, overhead earth wires, and installations involving extra long spans.

Against any given resistance of conductor, ACSR conductor may be manufactured to have different tensile strengths as per requirement.

The principal advantage of these conductors are their high tensile strength and light weight, covering longer spans with less supports.

Due to the greater diameter of an ACSR conductor much higher corona limit can be obtained, giving a big advantage on high and extra high voltage overhead lines.

Key Benefits:

•  High tensile strength as compared to AAC conductor.
•  Lighter Weight as compared to Copper Conductor.
•  Less maintance and easy installation.
•  Good performance and less cost.

Physical Contents of ACSR :

•  Density : 2.70 kgm/dm³ at 20°C
•  Coefficient of Linear Expansion : 23 x 10^-6 / °C
•  Resistivity : 61%IACS
•  Constant Mass Temperature Coefficient (a) : 0.00360/ °C
•  Material : Aluminum 1350 & GSW

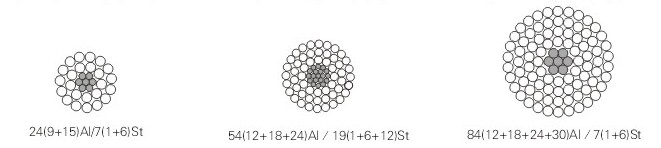

Structure :

DIMENSIONS

ASTM-B232 ACSR Conductor
