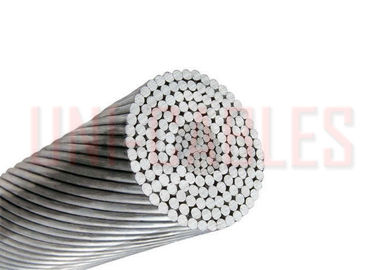

High Voltage Chinese Standard ACSR Conductor Bare ISO9001 GB1179 - 83 Type LGJ Rope

: Large Image : High Voltage Chinese Standard ACSR Conductor Bare ISO9001 GB1179 - 83 Type LGJ Rope

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	ACSR

Payment & Shipping Terms:

Minimum Order Quantity:	1 Metric-Tons
Price:	Negotiable
Packaging Details:	1 MT per Wooden Reel
Delivery Time:	15-20 days
Supply Ability:	100000MT per Month

Contact Now

Detailed Product Description

Conductor:	Aluminum 1350	Core:	GSW
Size:	10-1250mm2	Standard:	GB1179-83
No. Of Wires:	7-91 Wires	Resistivity:	61% IACS

China Standard ACSR Conductor GB1179-83 Type LGJ Rope Conductor High Voltage

Introductions:

These bare conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers.

The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 7, 19, 37 and 61 wires. The diameters of steel and aluminium wires c an be the same, or different.

Electrical Properties:

Density@20oC	Aluminium: 2.703 kg/dm
	Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C	Aluminium: 0.00403 (°C)
Resistivity@20°C	Aluminium: Should not exceed 0.028264
Linear Expansivity	Aluminium: 23 x10 (°C)
	Galvanised Steel: 11.5 x10 (1/°C)

Service Conditions:

Ambient Temperature	-5°C - 50°C
Wind Pressure	80 – 130kg/m^2
Seismic Acceleration	0.12 - 0.05g
Isokeraunic Level	10 – 18
Relative Humidity	5 – 100%

Structure :

High Voltage Chinese Standard ACSR Conductor Bare ISO9001 GB1179 - 83 Type LGJ Rope

DIMENSIONS

China standard-GB1179-83
Nominal Area Aluminum/ Steel mm2	Stranding No./Dia. No./mm		Calculated Area mm2			Overall Diameter mm	D.C. Resistance Ω/km	Calculated Breaking Load N	Calculated Weight kg/km	Continuous Carrying Capacity (A)
Nominal Area Aluminum/ Steel mm2	Alu	Steel	Alu	Steel	Total	Overall Diameter mm	D.C. Resistance Ω/km	Calculated Breaking Load N	Calculated Weight kg/km	70 ℃	80 ℃	90 ℃
10/2	6/1.50	1/1.50	10.60	1.77	12.37	4.50	2.70600	4120	42.9	66	78	87
16/3	6/1.85	1/1.85	16.13	2.69	18.82	5.55	1.77900	6130	65.2	85	100	113
25/4	6/2.32	1/2.32	25.36	4.23	29.59	6.96	1.13100	9290	102.6	111	131	149
35/6	6/2.72	1/2.72	34.86	5.81	40.67	8.16	0.82300	12630	141.0	134	158	180
50/8	6/3.20	1/3. 20	48.25	8.04	56.29	9.60	0.59460	16870	195.1	161	191	218
50/30	12/2.32	7/2.32	50.73	29.59	80.32	11.60	0.56920	42620	372.0	166	195	218
70/10	6/3.80	1/3.80	68.05	11.34	79.39	11.40	0.42170	23390	275.2	194	232	266
70/40	12/2.72	7/2.72	69.73	40.67	110.40	13.60	0.41410	58300	511.3	196	230	257
95/15	26/2.15	7/1.67	94.39	15.33	109.72	13.61	0.30580	35000	380.8	252	306	351
95/20	7/4.16	7/1.85	95.14	18.82	113.96	13.87	0.30190	37200	408.9	253	277	319
95/55	12/3.20	7/3.20	96.51	56.30	152.81	16.00	0.29920	78110	707.7	250	270	301
120/7	18/2.90	1/2.90	118.89	6.61	125.50	14.50	0.24220	27570	379.0	287	350	401
120/20	26/2.38	7/1.85	115.67	18.82	134.49	15.07	0.24960	41000	466.8	285	348	399
120/25	7/4.72	7/2.10	122.48	24.25	149.73	15.74	0.23450	47880	526.6	265	315	385
120/70	12/3.60	7/3.60	122.15	71.25	193.40	18.00	0.23640	98370	895.6	258	301	335
150/8	18/3.20	1/3.20	144.76	8.04	152.80	16.00	0.19890	32860	461.4	323	395	454
150/20	24/2.78	7/1.85	145.68	18.82	164.50	16.67	0.19800	46630	549.4	326	400	461
150/25	26/2.70	7/2.10	148.86	24.25	173.11	17.10	0.19390	54110	601.0	331	407	469
150/35	30/2.50	7/2.50	147.26	34.36	181.62	17.50	0.19620	65020	676.2	331	407	469
185/10	18/3.60	1/3.60	183.22	10.18	193.40	18.00	0.15720	40880	584.0	372	458	528
185/25	24/3.15	7/2.10	187.04	24.25	211.29	18.90	0.15420	59420	706.1	379	468	540
185/30	26/2.98	7/2.32	181.34	29.59	210.93	18.88	0.15900	64320	732.6	373	480	531
185/45	30/2.80	7/2.80	184.73	43.10	227.83	19.60	0.15640	80190	848.2	379	489	541
210/10	18/3.80	1/3.80	204.14	11.34	215.48	19.00	0.14110	45140	650.7	397	490	565
210/25	24/3.33	7/2.22	209.02	27.10	236.12	19.98	0.13800	65990	789.1	405	501	579
210/35	26/3.22	7/2.50	211.73	34.36	246.09	20.38	0.13630	74250	853.9	409	507	586
210/50	30/2 98	7/2.98	209.24	48.82	258.06	20.86	0.13810	90830	960.8	409	507	586
240/30	24/3.60	7/2.40	244.29	31.67	275.96	21.60	0.11810	75620	922.2	445	552	639
240/40	26/3.42	7/2.66	238.85	38.90	277.75	21.66	0.12090	83370	964.3	440	546	633
240/55	30/3.20	7/3.20	241.27	56.30	297.57	22.40	0.11980	102100	1108.0	445	554	641
300/15	42/3.00	7/1.67	296.88	15.33	312.21	23.01	0.09721	68060	939.8	495	615	711
300/20	45/2.93	7/1.95	303.42	20.91	324.33	23.43	0.09520	75650	1002.0	502	624	722
300/25	48/2.85	7/2.22	306.21	27.10	333.31	23.76	0.09433	83410	1058.0	505	628	726
300/40	24/3.99	7/2.66	300.09	38.90	338.99	23.94	0.09614	92220	1133.0	503	628	728
300/50	26/3.83	7/2.98	299.54	48.82	348.36	24.26	0.09636	103400	1210.0	504	629	730
300/70	30/3.60	7/3.60	305.36	71.25	376.61	25.20	0.09463	128000	1402.0	512	641	745
400/20	42/3.51	7/1.95	406.40	20.91	427.31	26.91	0.07104	88850	1286.0	595	746	884
400/25	45/3.33	7/2.22	391.91	27.10	419.01	26.64	0.07370	95940	1295.0	584	730	845
400/35	48/3.22	7/2.50	390.88	34.36	425.24	26.82	0.07389	103900	1349.0	583	729	844
400/50	54/3.07	7/3.07	399.73	51.82	451.55	27.63	0.07232	123400	1511.0	592	741	857
400/65	26/4.42	7/3.44	398.94	65.06	464.00	28.00	0.07236	135200	1611.0	597	752	876
400/95	30/4.16	19/2.50	407.75	93.27	501.02	29.14	0.07087	171300	1860.0	608	767	895
500/35	45/3.75	7/2.50	497.01	34.36	531.37	30.00	0.05812	119500	1642.0	670	842	977
500/45	48/3.60	7/2.80	488.58	43.10	531.68	30.00	0.05912	128100	1688.0	664	834	967
500/65	54/3.44	7/3.44	501.88	65.06	566.94	30.96	0.05760	154000	1897.0	667	850	983
630/45	45/4.2	7/2.80	623.45	43.10	666.55	33.60	0.04633	148700	2060.0	763	964	1120
630/55	48/4.12	7/3.20	639.92	56.30	696.22	34.32	0.04514	164400	2209.0	775	979	1136
630/80	54/3.87	19/2.32	635.19	80.32	715.51	34.82	0.04551	192900	2388.0	774	977	1131
800/55	45/4.80	7/3.20	814.30	56.30	870.60	38.40	0.03547	191500	2690.0	887	1126	1310
800/70	48/4.63	7/3.60	808.15	71.25	879.40	38.58	0.03574	207000	2791.0	884	1121	1301
800/100	54/4.33	19/2.60	795.17	100.88	896.05	38.98	0.03635	241100	2991.0	878	1113	1288
