4 AWG Overhead Line Conductor , Aluminum Clad Steel Reinforced Bare Conductor

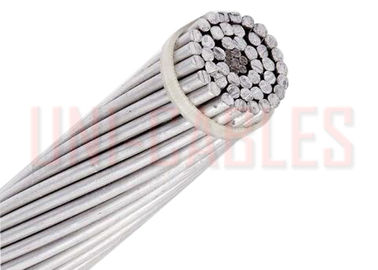

: Large Image : 4 AWG Overhead Line Conductor , Aluminum Clad Steel Reinforced Bare Conductor

Product Details:

Place of Origin:	CHINA
Brand Name:	UNI-CABLES
Certification:	ISO9001
Model Number:	ACSR/AW

Payment & Shipping Terms:

Minimum Order Quantity:	1 Metric-Tons
Price:	Negotiable
Packaging Details:	1 MT per Wooden Reel
Delivery Time:	15-20 days
Supply Ability:	100000MT per Month

Contact Now

Detailed Product Description

Conductor:	AL1350	Core:	ACS
Size:	28.3-288mm2	Standard:	AS3607
No. Of Wires:	7-91 Wires	Resistivity:	61% IACS

ACSR/AW Aluminum Conductor Aluminum Clad Steel Reinforced Overhead Bare Conductor

Introductions:

This concentric lay stranded conductor wire is made out of round Aluminum Alloy 1350-H19 complete with a steel core that is aluminum clad. It is either going to be AW2 for normal strength applications or an AW3 for high strength applications. With the AW3 option, this has an extremely high UTS (Ultimate Tensile Strength) rating and is often specified by power utilities for use in overhead transmission lines.

This cable has many uses and while it has been recommended as an excellent cable for transmission between power stations and sub-stations, it is also commonly used for primary and secondary distribution cable. Because of this cable’s strength, and aluminum layer which protects the cable from corrosion, this cable is commonly used in highly corrosive areas such as areas close to water, specifically in coastal regions or areas that have high levels of industrial pollution.

Product Highlights

This conductor is mainly used as the phase conductor for overhead transmission and distribution.
This conductor is typically preferred over conventional ACSR because it holds up much better against corrosion, it has a much longer life, and over time, greatly reduces aggregate power loss.
Depending on the stranding pattern and size, this cable will weigh 3% to 6% less than its galvanized cousin.

Technical Standards

B-230 aluminum 1350-H19, extra hard, round wire for electrical purposes. The aluminum wire shall be made from drawing stock and shall be free of brittleness as evidenced by its ability to be coiled or looped around its own diameter with or without a mandrel.

B-502 round, aluminum-clad steel core wire used for mechanical reinforcement in the manufacture of aluminum conductors, aluminum-clad steel reinforced.

B-549 concentric-lay-stranded conductors made from round aluminum 1350-H19 (extra hard) aluminum wires and round aluminum-clad steel core wires for use as overhead electrical conductors

DIMENSIONS

Code Word	Size (AWG or kcmil)	Strand- ing (Al/Aw)	Diameter (ins.)				Weight Per 1000 ft.(lbs)			Rated Strength (lbs.)	Resistance OHMS/1000 ft. Ampacity+		Allowable (Amps)
			Individual Wires		Aw Core	Comp. Cable	Al	Aw	Total		DC @ 20°C	AC @ 75°C
			Al	Aw	Aw Core	Comp. Cable	Al	Aw	Total		DC @ 20°C	AC @ 75°C
Swan/Aw	4	6/1	0.0834	0.0834	0.0834	0.25	39	16	55	1780	0.3917	0.4770	145
Swanate/Aw	4	7/1	0.0772	0.103	0.103	0.257	39	24	63	2280	0.3814	0.4642	148
Sparrow/Aw	2	6/1	0.1052	0.1052	0.1052	0.316	62	25	87	2760	0.2462	0.2997	194
Sparate/Aw	2	7/1	0.0974	0.1298	0.1298	0.325	62	38	100	3510	0.2396	0.2917	198
Robin/Aw	1	6/1	0.1181	0.1181	0.1181	0.354	78	31	109	3450	0.1950	0.2373	225
Raven/Aw	1/0	6/1	0.1327	0.1327	0.1327	0.398	99	39	138	4250	0.1547	0.1884	260
Quail/Aw	2/0	6/1	0.1489	0.1489	0.1489	0.447	124	50	174	5130	0.1227	0.1494	301
Pigeon/Aw	3/0	6/1	0.1672	0.1672	0.1672	0.502	156	63	219	6300	0.09747	0.1188	347
Penguin/Aw	4/0	6/1	0.1878	0.1878	0.1878	0.563	197	79	277	7690	0.07726	0.09422	402
Waxwing/Aw	266.8	18/1	0.1217	0.1217	0.1217	0.609	250	33	283	6820	0.06364	0.07776	451
Partridge/Aw	266.8	26/7	0.1013	0.0788	0.2363	0.642	251	98	349	10800	0.06169	0.07541	465
Ostrich/Aw	300.0	26/7	0.1074	0.0835	0.2506	0.68	283	110	393	12100	0.05489	0.06712	500
Merlin/Aw	336.4	18/1	0.1367	0.1367	0.1367	0.684	315	42	357	8540	0.05044	0.06175	522
Linnet/Aw	336.4	26/7	0.1137	0.0885	0.2654	0.72	317	123	440	13500	0.04897	0.05989	537
Oriole/Aw	336.4	30/7	0.1059	0.1059	0.3177	0.741	318	177	494	16700	0.04795	0.05861	547
Chickadee/Aw	397.5	18/1	0.1486	0.1486	0.1486	0.743	373	50	422	9780	0.04268	0.05230	580
Brant/Aw	397.5	24/7	0.1287	0.0858	0.2574	0.772	374	116	490	14100	0.04185	0.05124	592
Ibis/Aw	397.5	26/7	0.1236	0.0962	0.2885	0.783	374	146	520	15800	0.04144	0.05072	597
Lark/Aw	397.5	30/7	0.1151	0.1151	0.3453	0.806	375	209	584	19600	0.04059	0.04965	608
Pelican/Aw	477	18/1	0.1628	0.1628	0.1628	0.814	447	59	507	11500	0.03556	0.04344	651
Flicker/Aw	477	24/7	0.141	0.094	0.2819	0.846	449	139	589	16700	0.03487	0.04273	663
Hawk/Aw	477.0	26/7	0.1354	0.1053	0.316	0.858	449	175	624	18900	0.03453	0.04231	669
Hen/Aw	477.0	30/7	0.1261	0.1261	0.3783	0.883	450	251	701	23400	0.03382	0.04139	682
